ToughLift® Manufacturer Parts

OEM Parts for ToughLift^® Material Lifts

We stock a comprehensive range of OEM parts for Material Lifts.

Our friendly, experienced team are on hand to help you find the right ToughLift^® Material Lift Parts - call 01480 891251.

We supply a full range of ToughLift^® parts for:

Product Code 600010

Product Code 600015

Product Code 600020

Product Code 600025

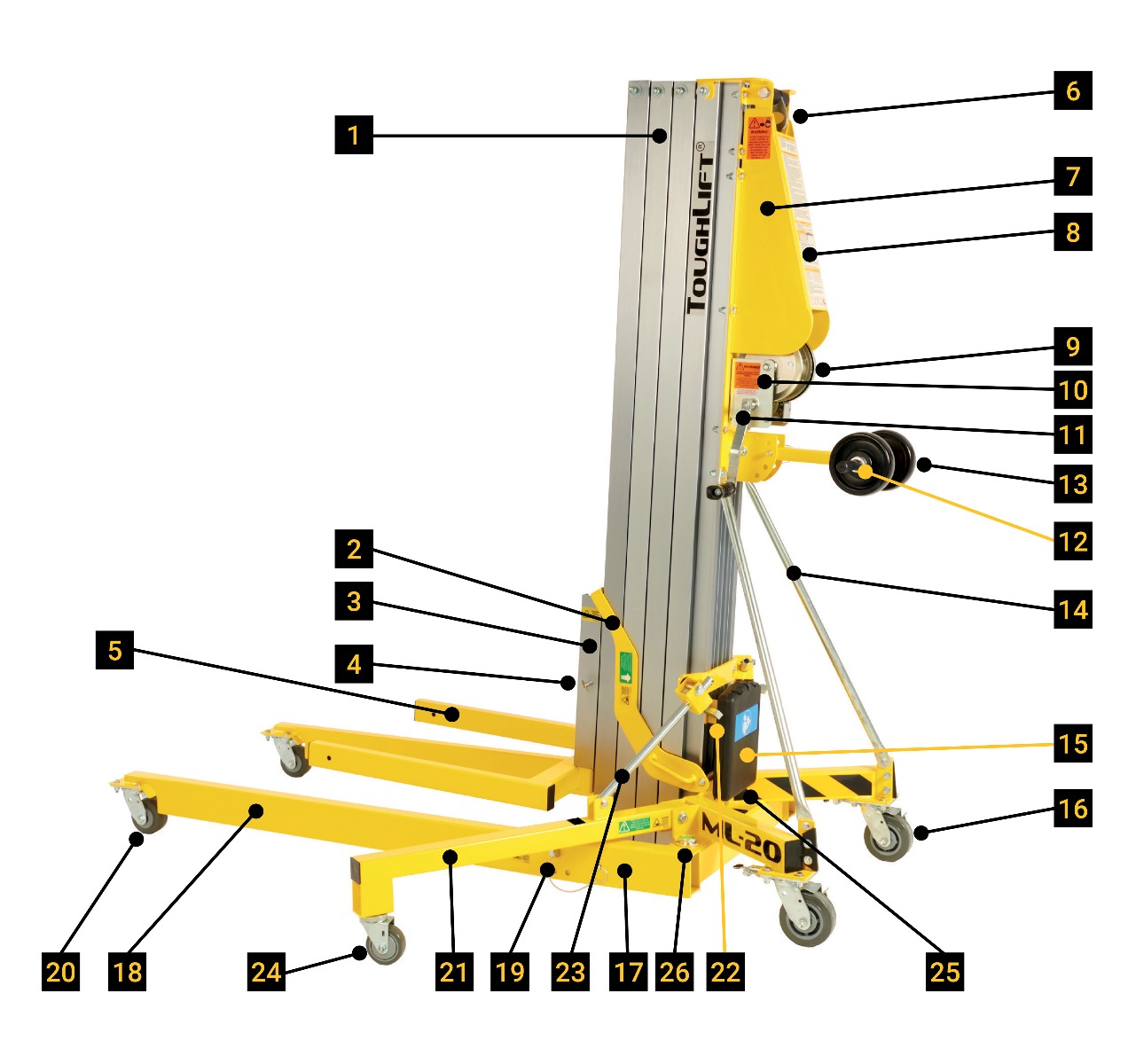

All the ToughLift^® parts you need:

Mast
Carriage lock
Carriage
Standard Forks/Boom retaining pin
Standard Forks
Hoisting/winchning anchor
Cable guard
Main operational & safety decal
Cable
Winch
Winch handle
Push & steer handle
Loading wheel
Mast brace
Document holder

Braked swivel castor
Chassis
Front leg
Front leg retaining pin
Front leg swivel castor
Stabiliser (standard on ML-20 and ML-25/ optional on ML-10 and ML-15)
Stabiliser brace latch plates
Stabiliser brace
Stabiliser swivel castor
Rough Terrain Wheel Kit support locator
Spirit level

Get in touch with our experienced team today on 01480 891251 or email us at parts@accessplatforms.co.uk

ToughLift^® - Material lift Accessories

All machines are supplied with the Standard Forks load handling attachment.

Accessory	Product code
Standard Forks (standard on all models)	640000
Stabiliser Set (standard on ML-20 & ML-25)	620000
Load Platform	670000
Pipe Cradle	610043
Extension Forks	660000
Rough Terrain Wheel Kit	680000
Boom	650000

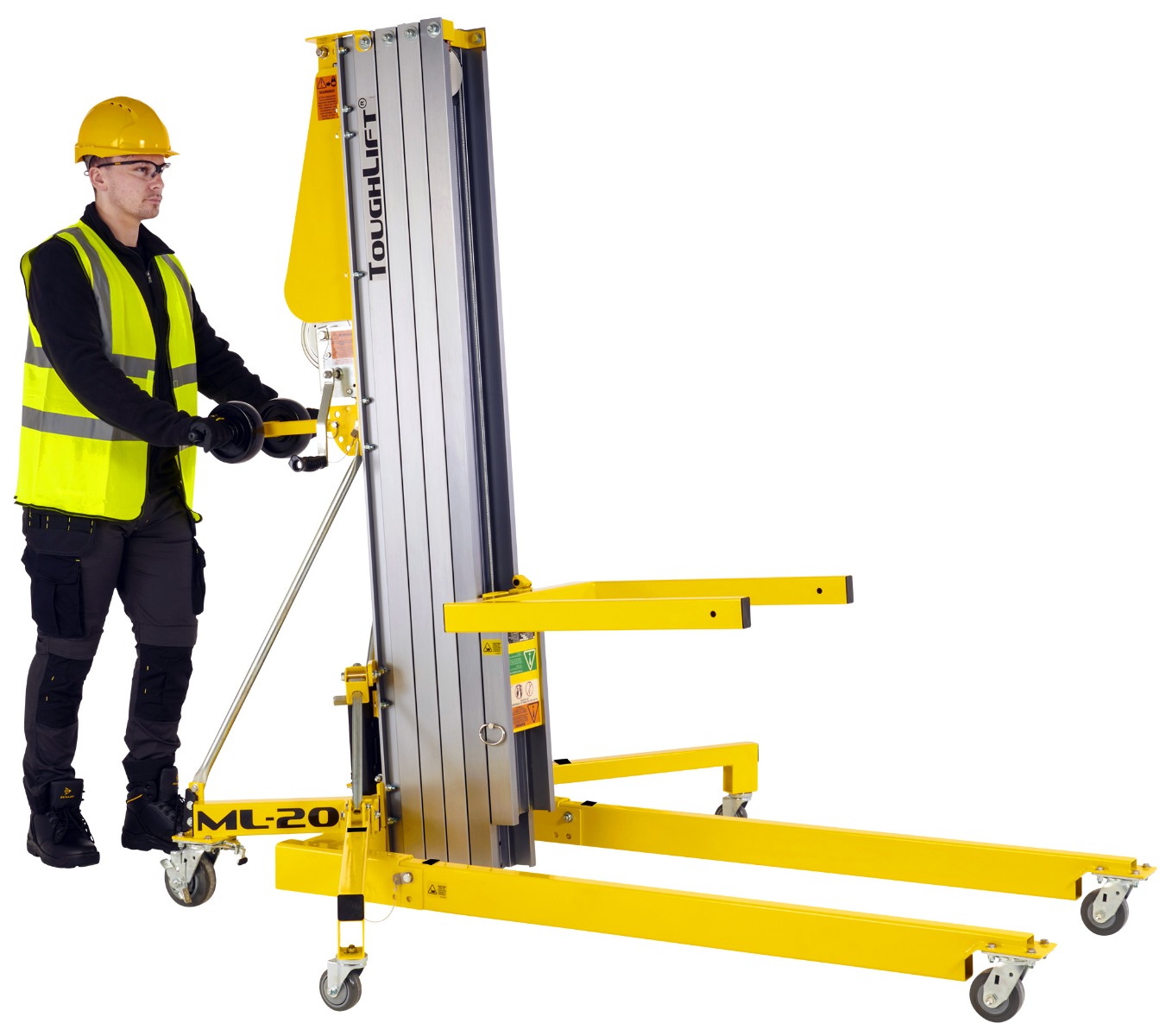

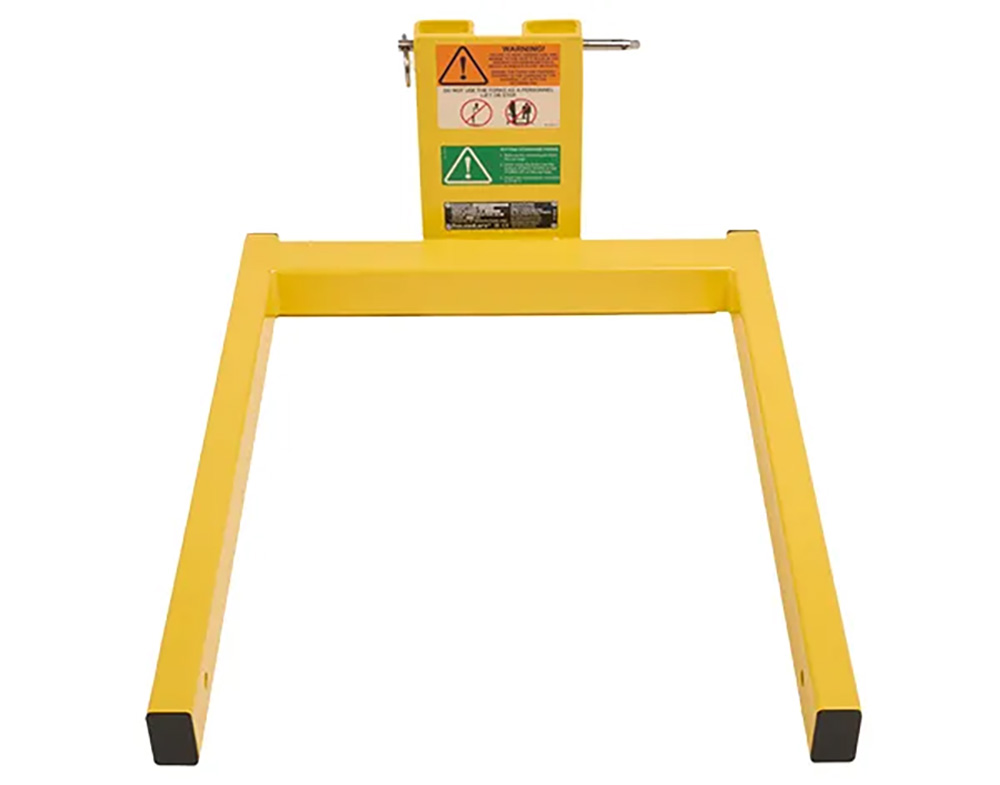

Standard Forks for material lift (standard on all models):
Part No. 640000

All Toughlift material lifts are supplied with a set of standard forks. Replacement material lift fork sets and individual parts are available.

Weight:	18kg
Length:	69.3cm
Width:	58.4cm
Depth:	6.45cm

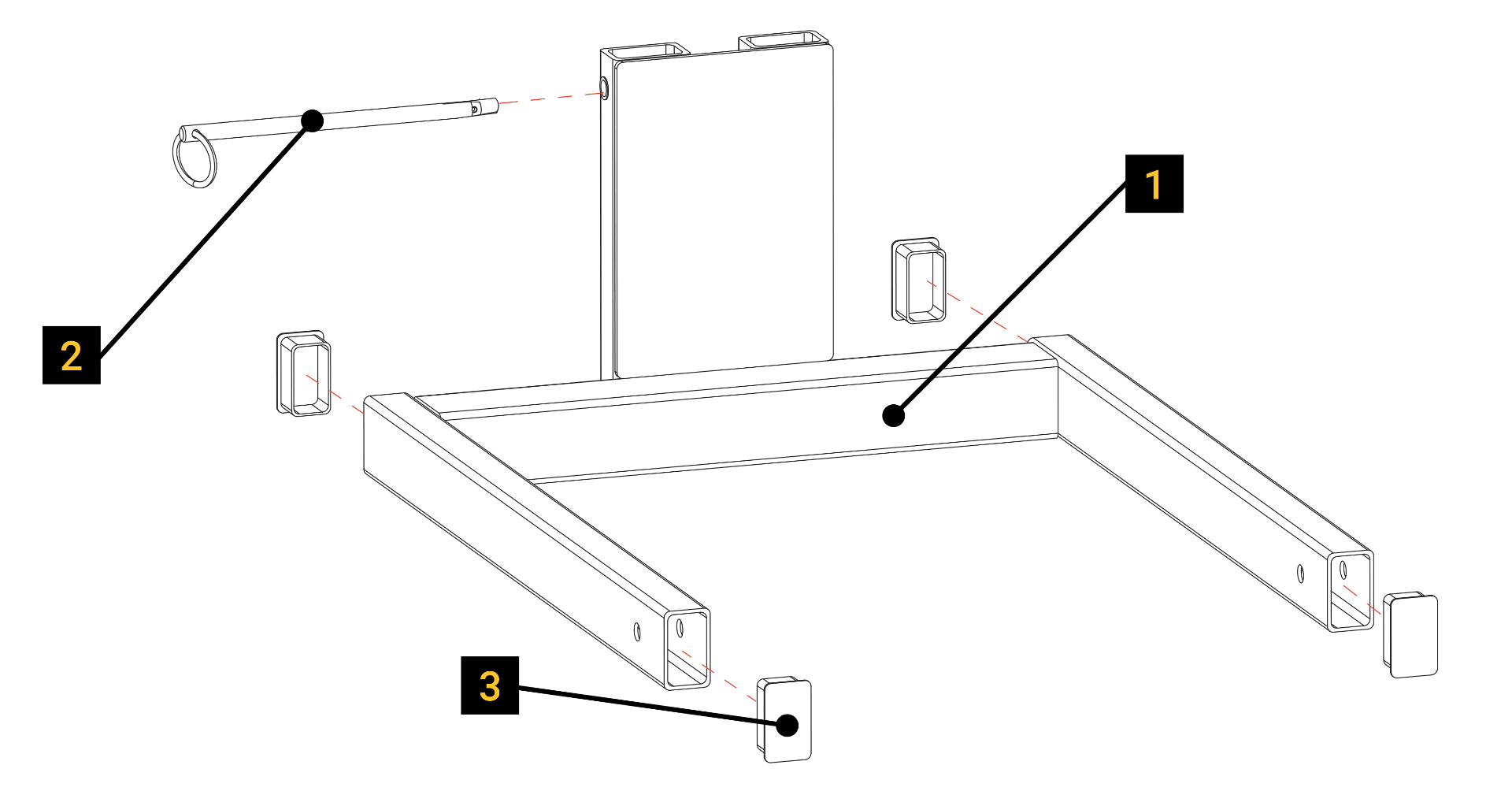

Toughlift Standard Forks Parts

Item	Part No.	Description	Quantity
1	640000	Standard Forks - complete assembly	1
1	640002	Standard Forks & Boom retaining pin	1
1	640003	Standard Forks end cap	4

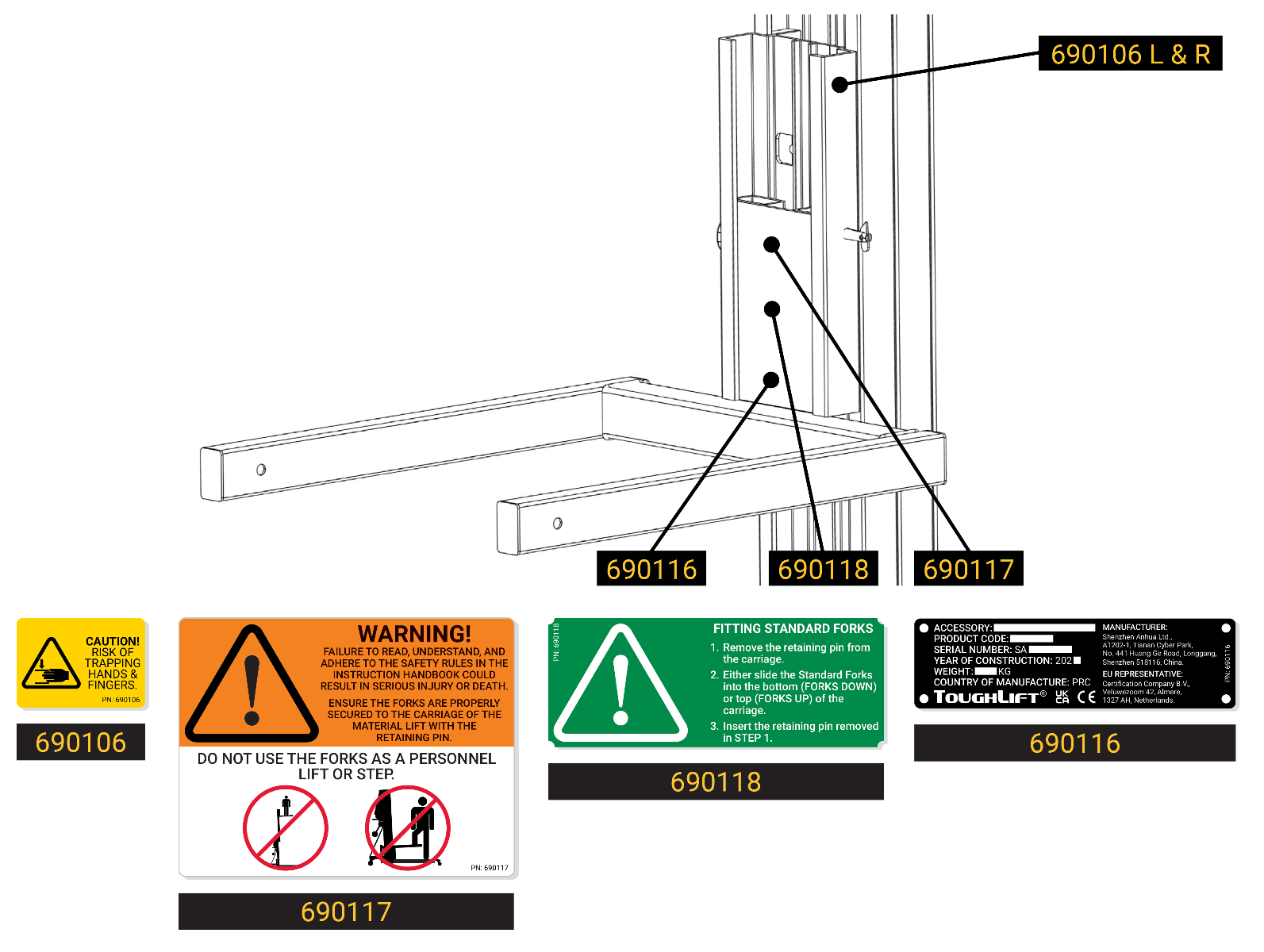

Decals & manufacturer's plate for Material Lift Standard Forks accessory

Part No.	Description	Quantity
690106	Finger trap decal - left & right	2
690117	Standard Forks safety decal	1
690118	Standard Forks fitting decal	1
690116	Removable parts plate (riveted)	1

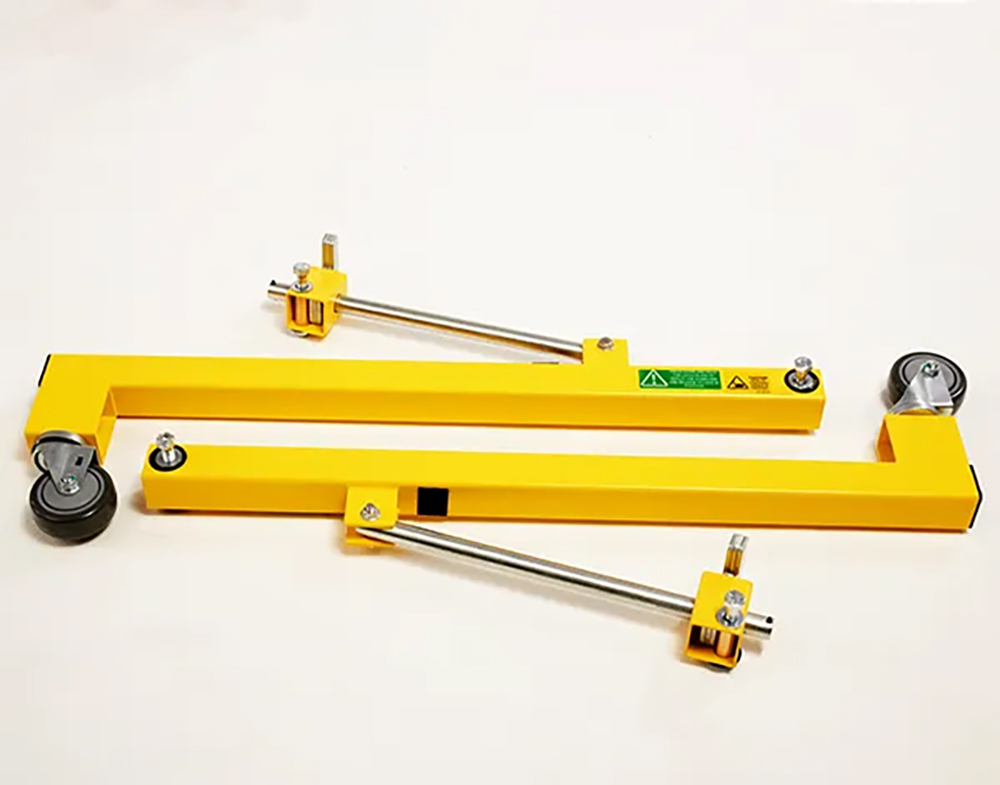

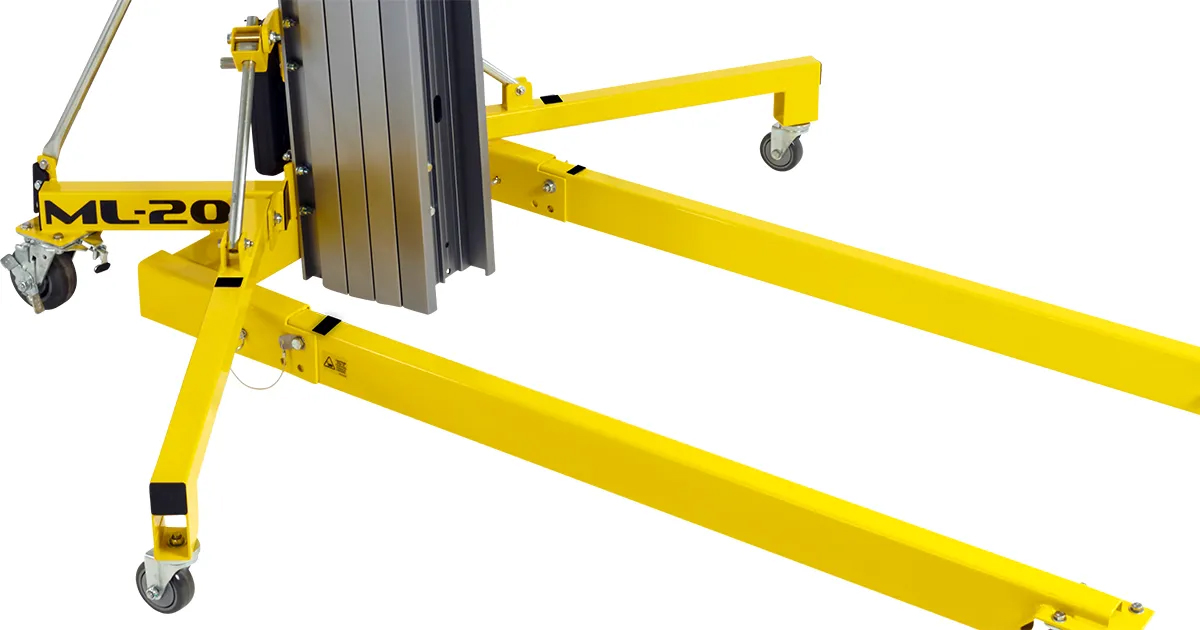

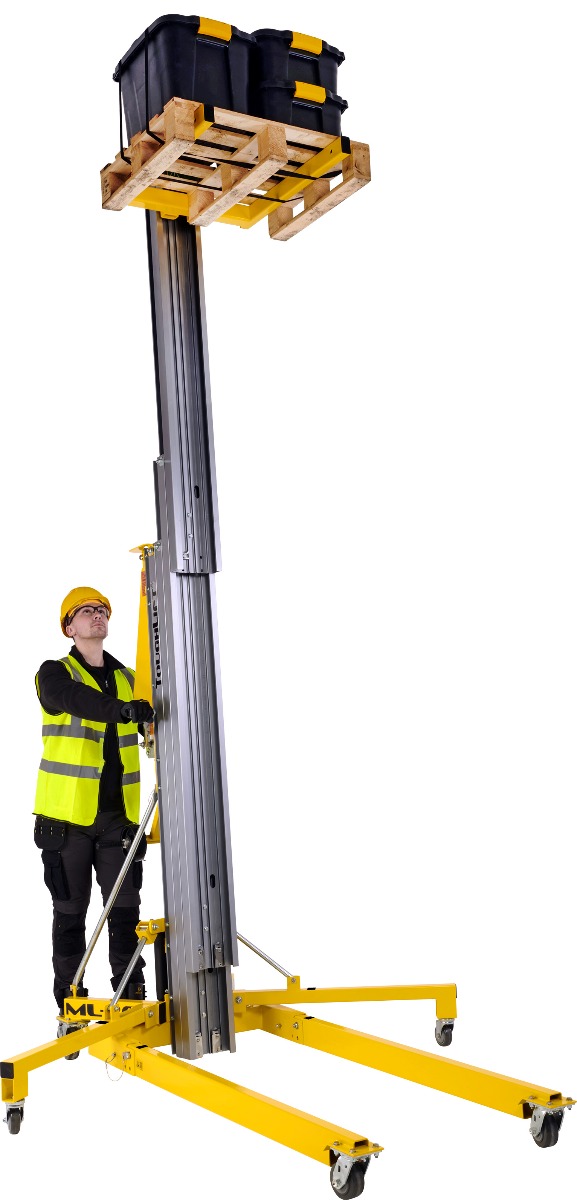

Stabiliser Set for material lift (standard on ML-20 & ML-25):
Part No. 620000

Toughlift ML-20 (link) and ML-25 (link) are supplied with stabiliser set as standard. However, they also fit perfectly onto the two smaller material lift models – ML-10 (link) and ML-15 (link) should operators prefer. Replacement stabilsers can also be purchased for your existing material lift.

Weight:	6.3kg (each)
Length:	86.6cm (each)
Width:	5.1cm (each)
Depth:	58cm (each)

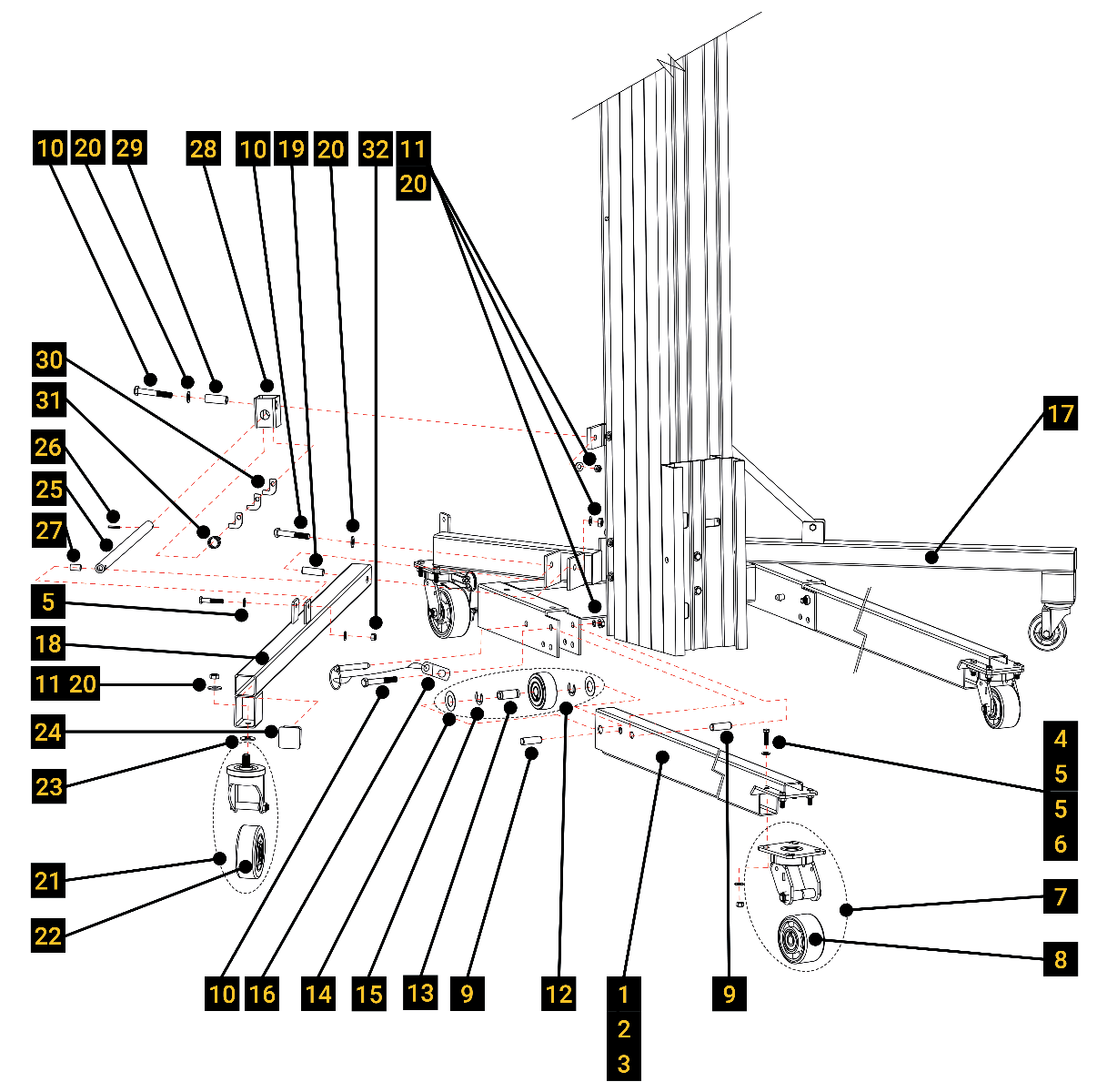

Toughlift Stabiliser Set Parts

Item	Part No.	Description	Quantity
Item	Part No.	Description	ML-10	ML-15	ML-20	ML-25
1	610013	Front leg for ML-10	2	N/A	N/A	N/A
2	610014	Front leg for ML-15	N/A	2	N/A	N/A
3	610015	Front leg for ML-20 & ML-25	N/A	N/A	2	2
4	630009	Bolt 3/8-16*1-1/4	8	8	8	8
5	630011	Washer 25/3213/321/16	16	16	20	20
6	630010	Nyloc nut 3/8-16	8	8	8	8
7	610016	Front leg swivel castor - complete assembly	2	2	2	2
8	610046	Front leg swivel castor - wheel only	2	2	2	2
9	610022	Self lubricating bush	4	4	4	4
10	630059	Bolt 1/2-13*1-3/8	2	2	6	6
11	630088	Low profile nyloc nut 1/2-13	2	2	8	8
12	610035	Front leg transport wheel assembly (wheel, axle, 2 washers, & 2 e-clips)	2	2	2	2
13	610032	Front leg transport wheel axle	2	2	2	2
14	610054	Washer M23*1.1mm	4	4	4	4
15	610033	Stainless-steel e-clip 16.5mm	4	4	4	4
16	610023	Front leg retaining pin & lanyard	2	2	2	2
17	620000	Stabiliser - complete assembly (set of 2)	N/A	N/A	1	1
18	620005	Stabiliser leg	N/A	N/A	2	2
19	620021	Self-lubricating bush	N/A	N/A	2	2
20	630062	Washer 1-1/161/25/64	2	2	12	12
21	620001	Stabiliser swivel castor - complete assembly	N/A	N/A	2	2
22	610047	Stabiliser swivel castor - wheel only	N/A	N/A	2	2
23	630109	Washer 1-3/89/161/8	N/A	N/A	2	2
24	620020	Stabiliser end cap	N/A	N/A	2	2
25	620005	Stabiliser brace	N/A	N/A	2	2
26	620022	Roll pin	N/A	N/A	2	2
27	620016	Self-lubricating bush	N/A	N/A	2	2
28	620007	Stabiliser brace mount	N/A	N/A	2	2
29	620008	Self-lubricating bush	N/A	N/A	2	2
30	620015	Stabiliser latch plate	N/A	N/A	6	6
31	620009	Stabiliser latch plate spring	N/A	N/A	2	2
32	620023	Low profile nyloc nut 3/8-16	N/A	N/A	2	2

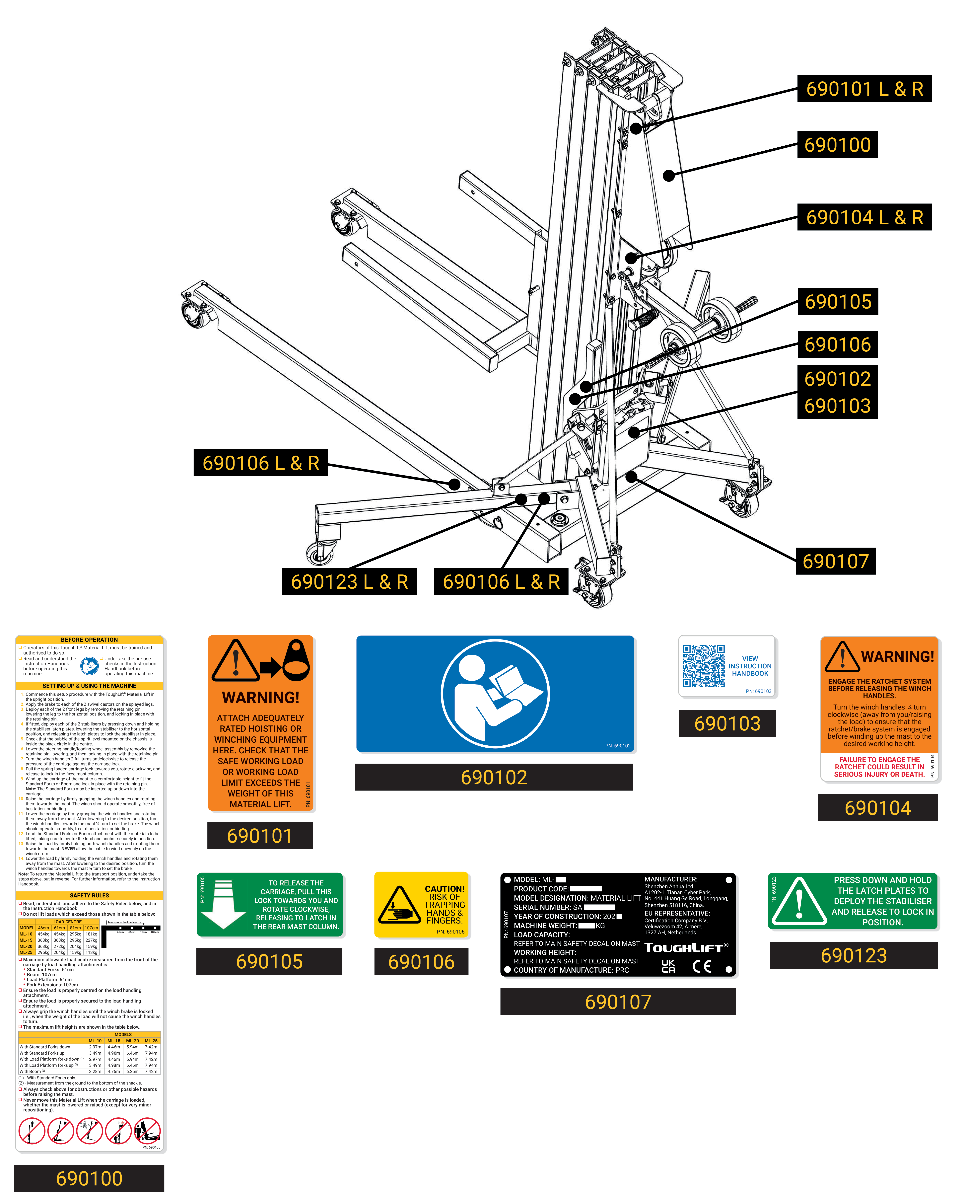

Decals & manufacturer's plate for Material Lift Stabiliser Set accessory

Part No.	Description	Quantity
Part No.	Description	ML-10	ML-15	ML-20	ML-25
690100	Main safety decal	1	1	1	1
690101	Hoisting & winching anchor decal - left & right	2	2	2	2
690102	Instruction Handbook decal	1	1	1	1
690103	Instruction Handbook QR code decal (inside document holder)	1	1	1	1
690104	Winch warning decal - left & right	2	2	2	2
690105	Carriage lock use decal	1	1	1	1
690106	Finger trap decal	3	3	5	5
690107	Manufacturer's plate for machine	1	1	1	1
690123	Stabiliser deployment decal - left & right	N/A	N/A	2	2

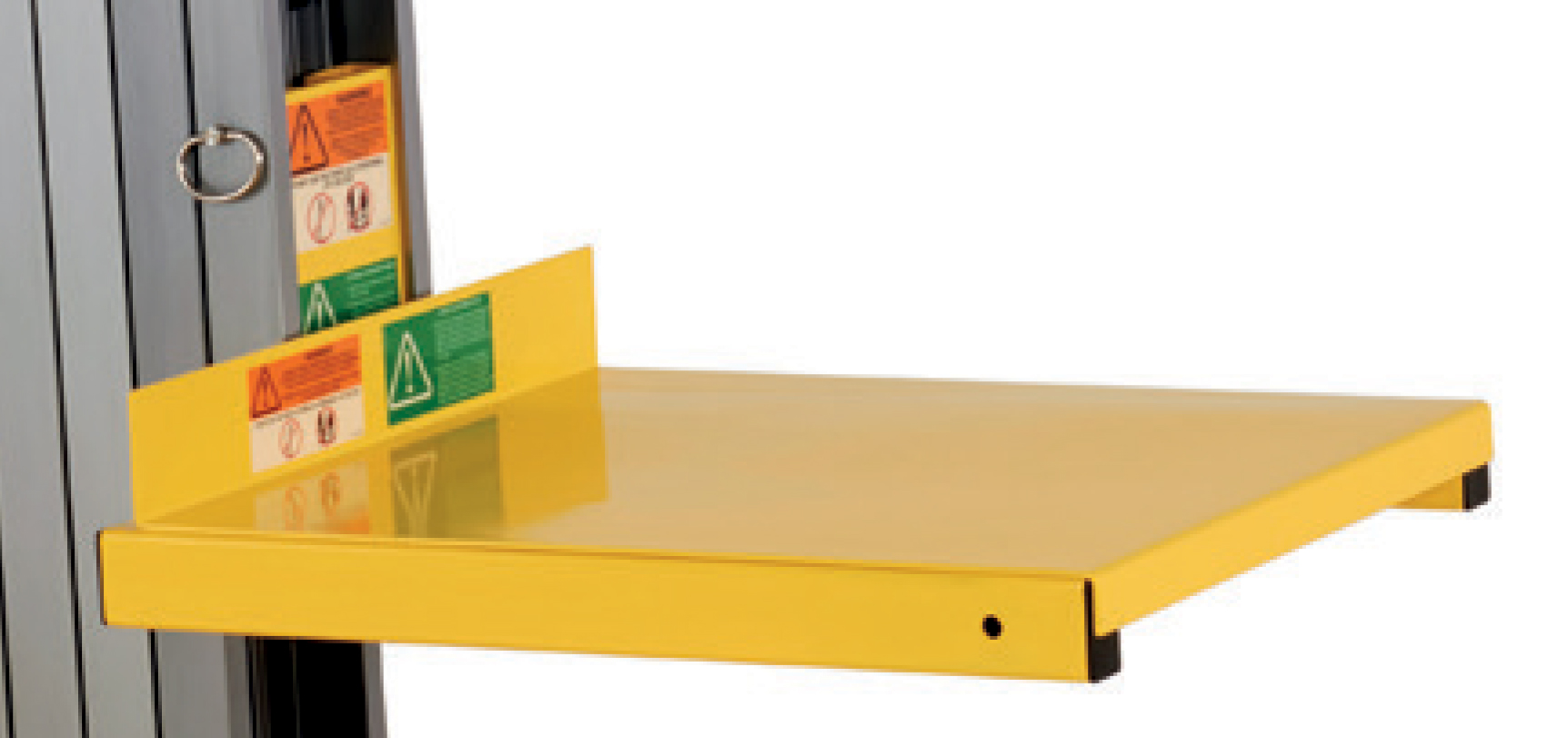

Load Platform for material lift:
Part No. 670000

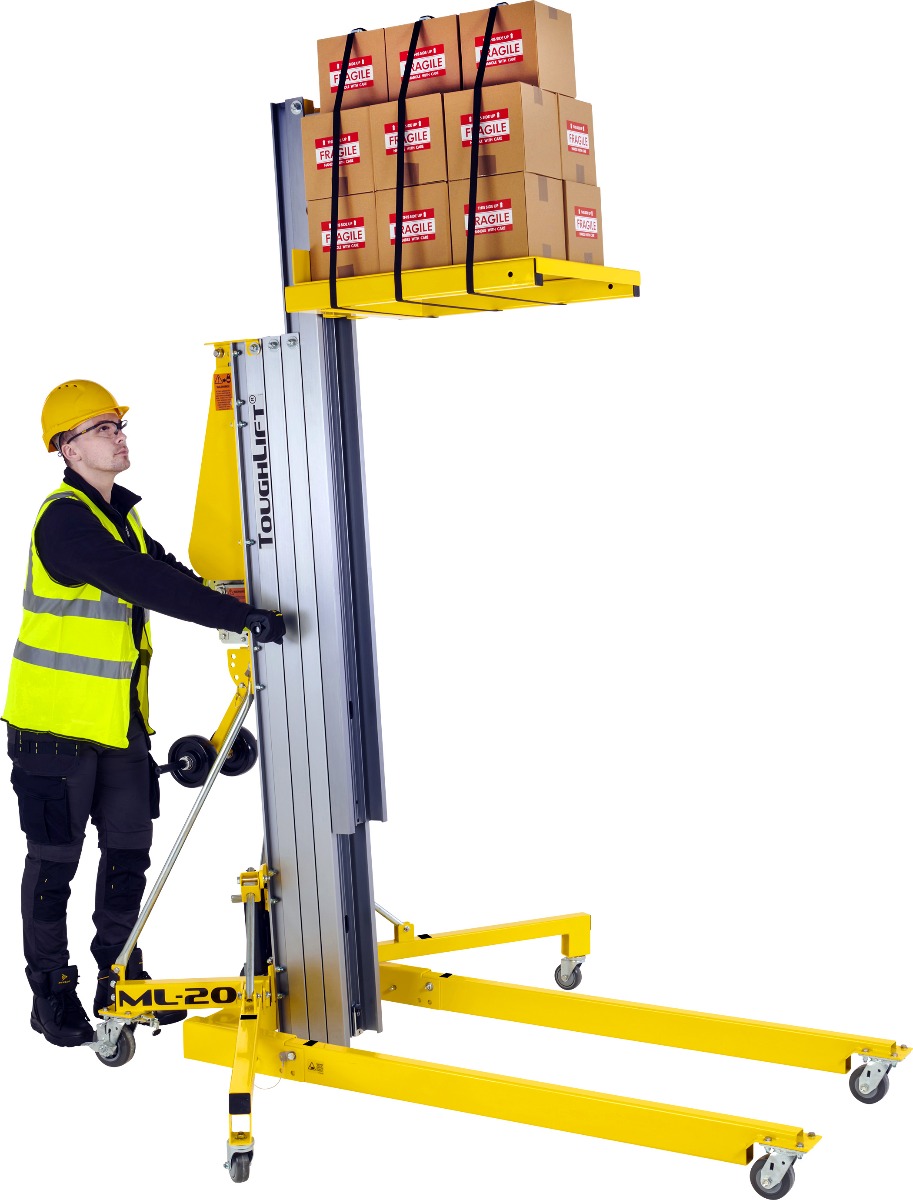

Adding a load platform to your ToughLift material lift makes it an ideal companion for lifting a number of smaller items.

It can be used with your material lift standard forks inserted up or down in the carriage

Weight:	15kg
Length:	70cm
Width:	58.5cm
Depth:	8.5cm

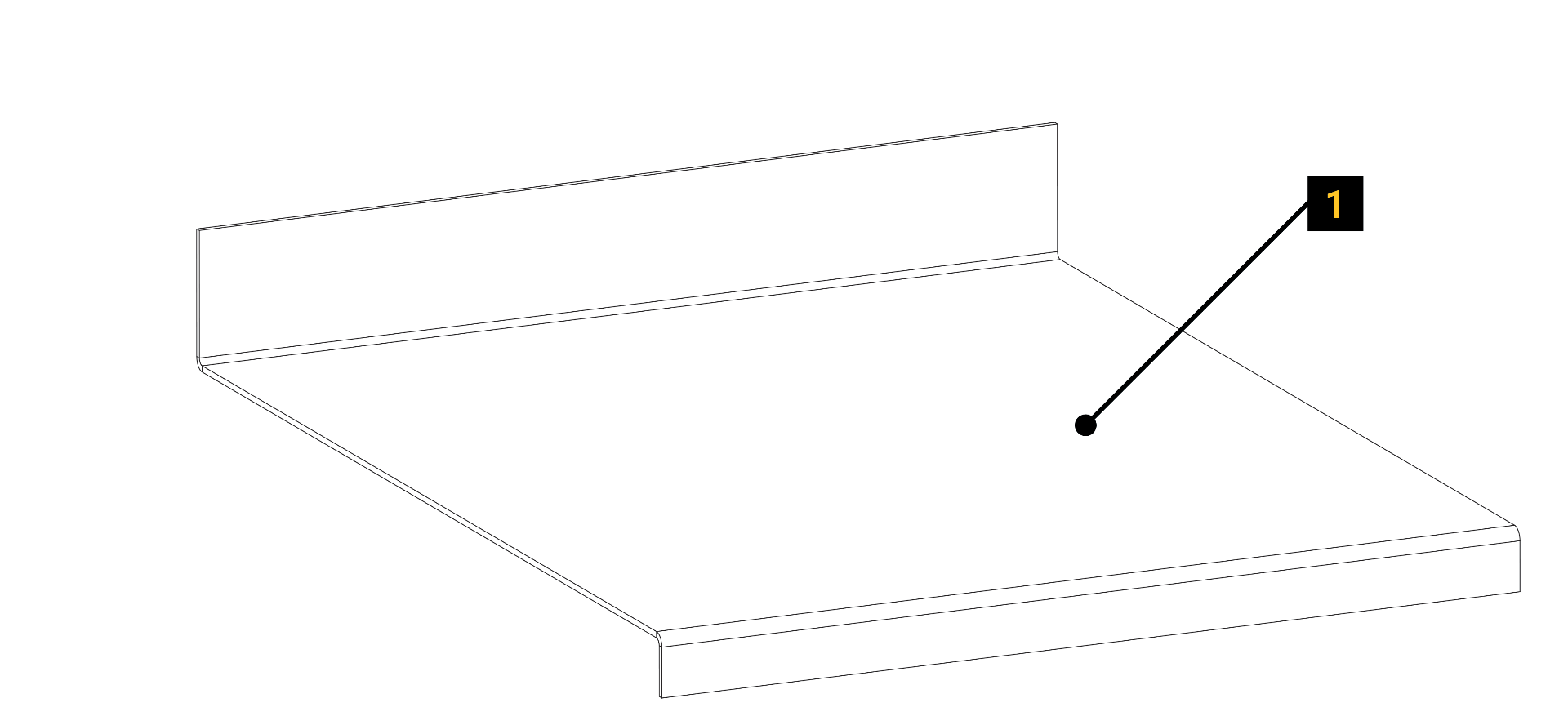

Toughlift Load Platform Parts

Item	Part No.	Description	Quantity
1	670000	Load Platform - complete assembly	1

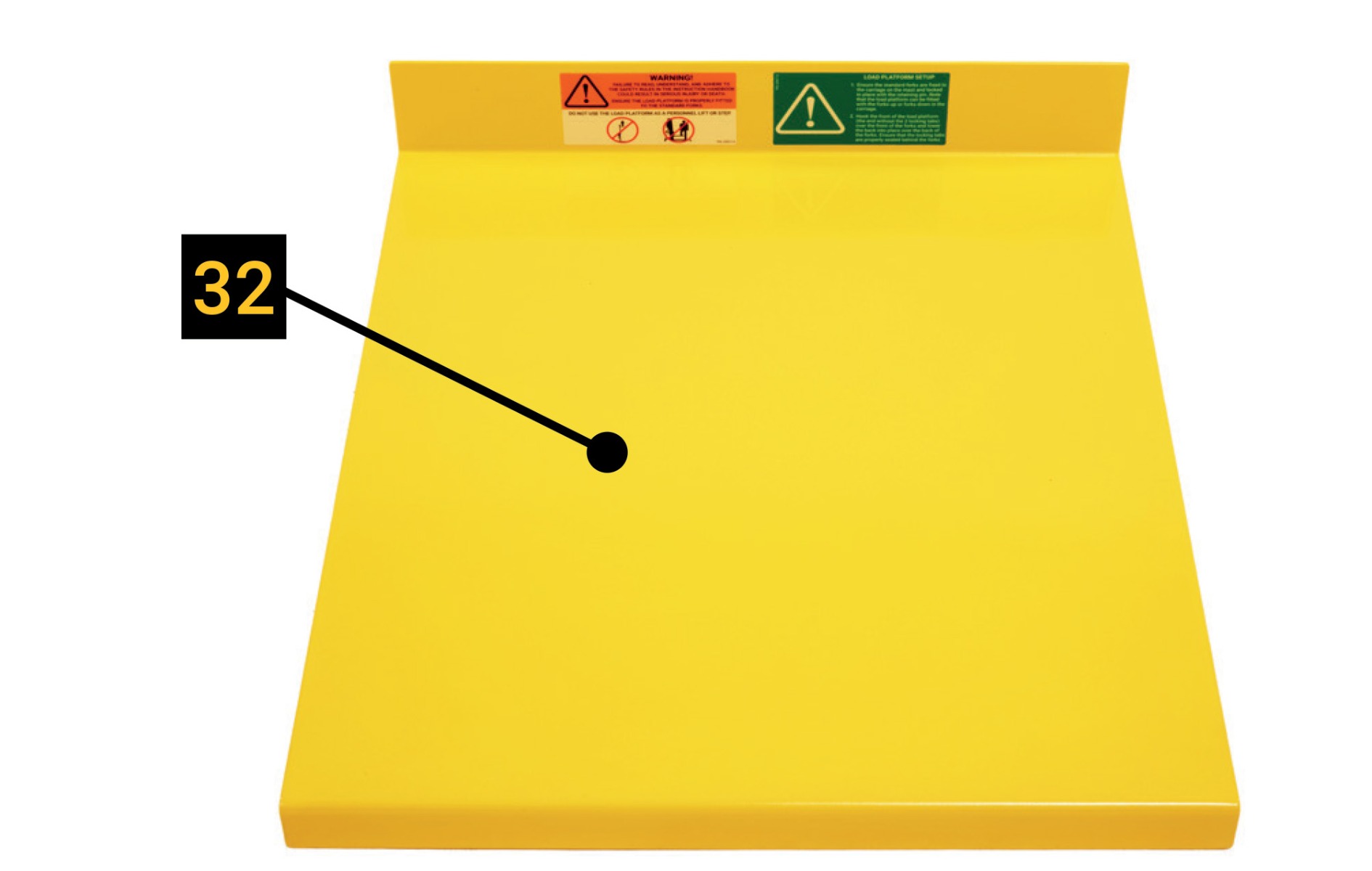

32. Load Platform

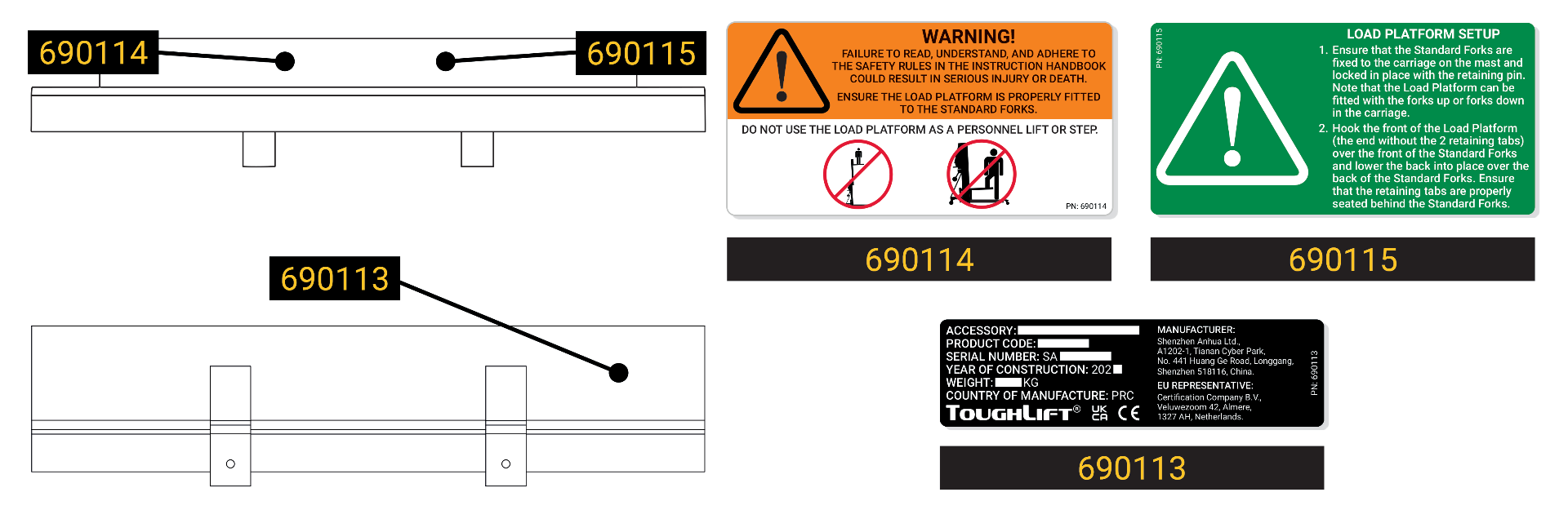

Decals & manufacturer's plate for Material Lift Load Platform accessory

Part No.	Description	Quantity
690114	Load Platform safety decal	1
690115	Load Platform setup decal	1
690113	Removable parts plate (3M VHB tape)	1

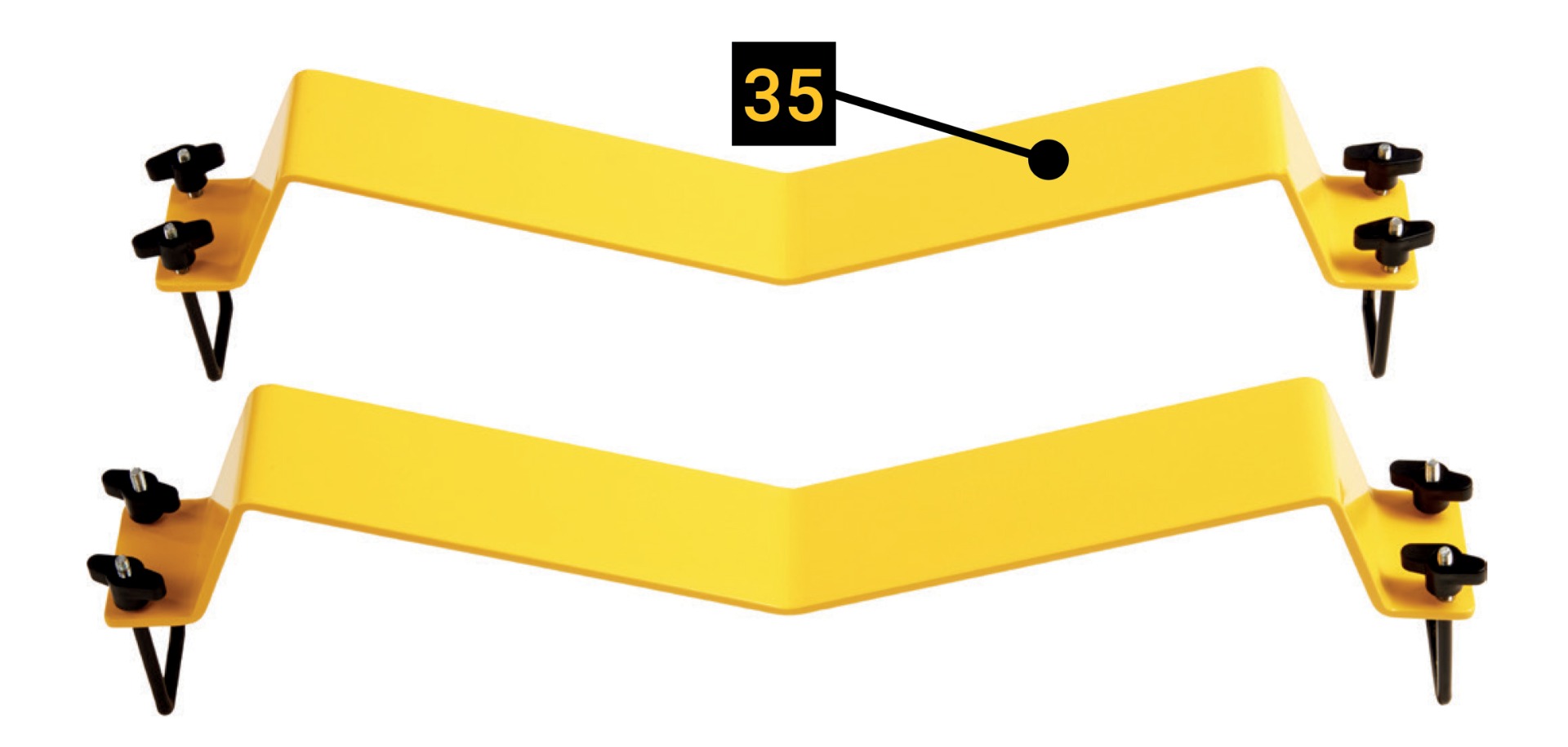

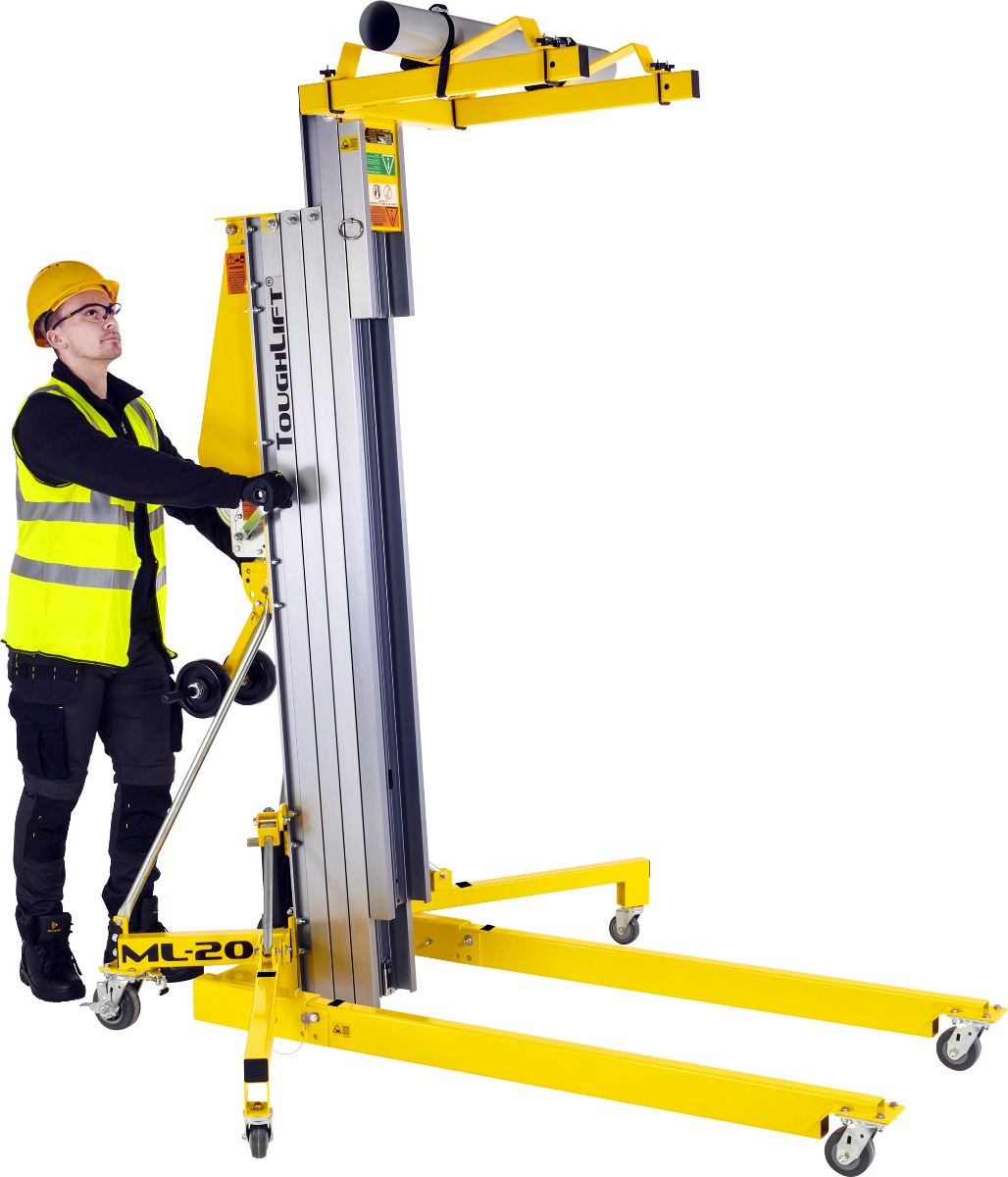

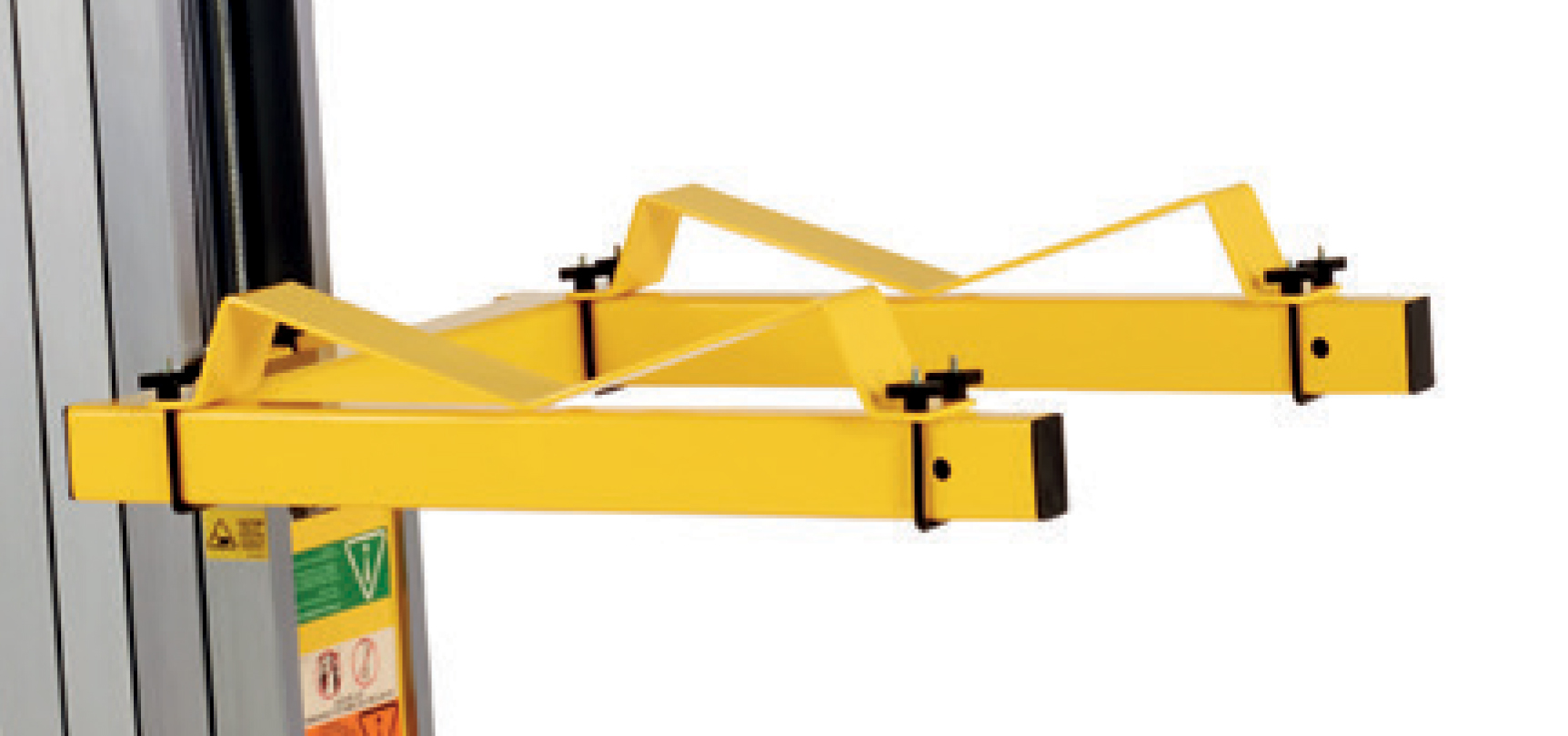

Pipe Cradle for material lift:
Part No. 610043

The Pipe Cradle attachment allows for the safe lifting of cylindrical shaped objects such as tubes, pipes, and ducting.

It is fitted to the Standard Forks of your ToughLift Material Lift either up or down in the carriage.

Weight:	4kg (set)
Length:	57.5cm (each)
Width:	6.9cm (each)
Depth:	14.5cm (each)

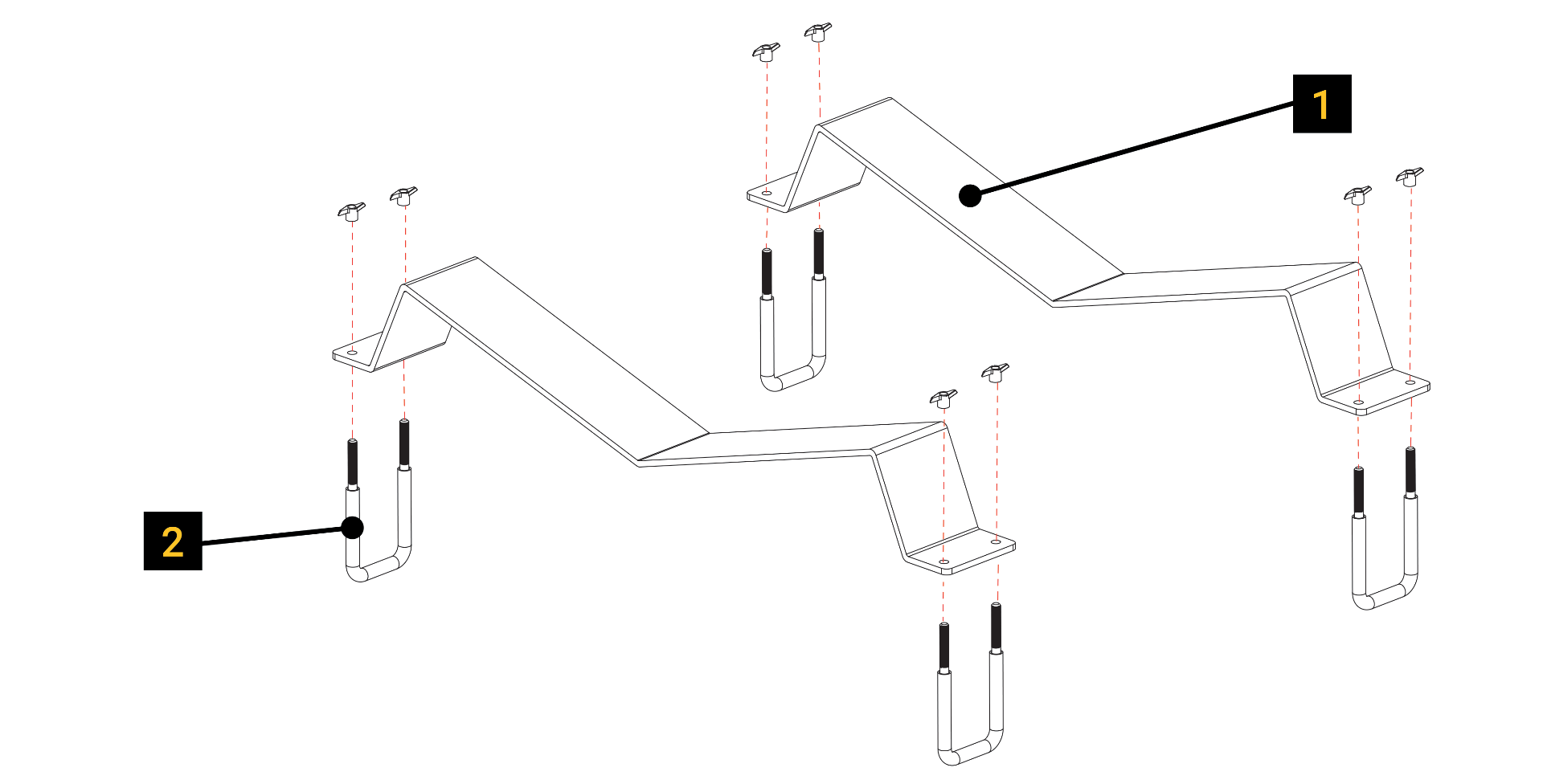

Toughlift Pipe Cradle Parts

Item	Part No.	Description	Quantity
1	610043	Pipe Cradle - complete assembly	1
2	610044	U-bolt with 2 wing nuts	4

35. Pipe Cradle

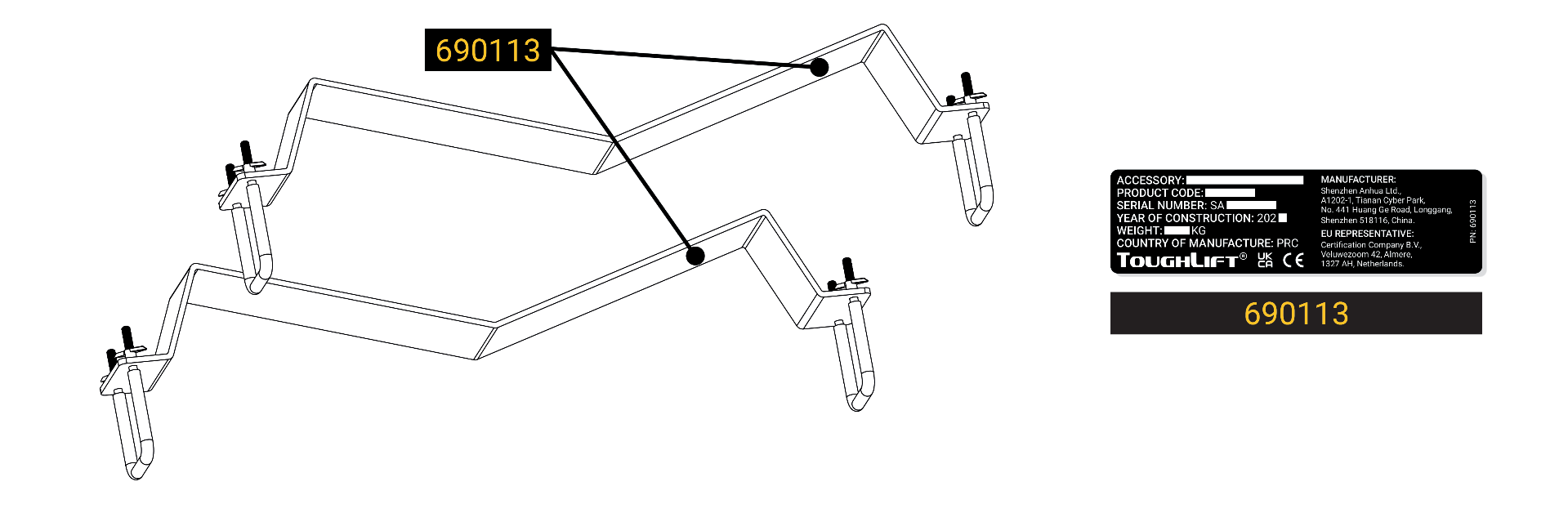

Decals & manufacturer's plate for Material Lift Pipe Cradle accessory

Part No.	Description	Quantity
690113	Removable parts plate (3M VHB tape) - left & right units	2

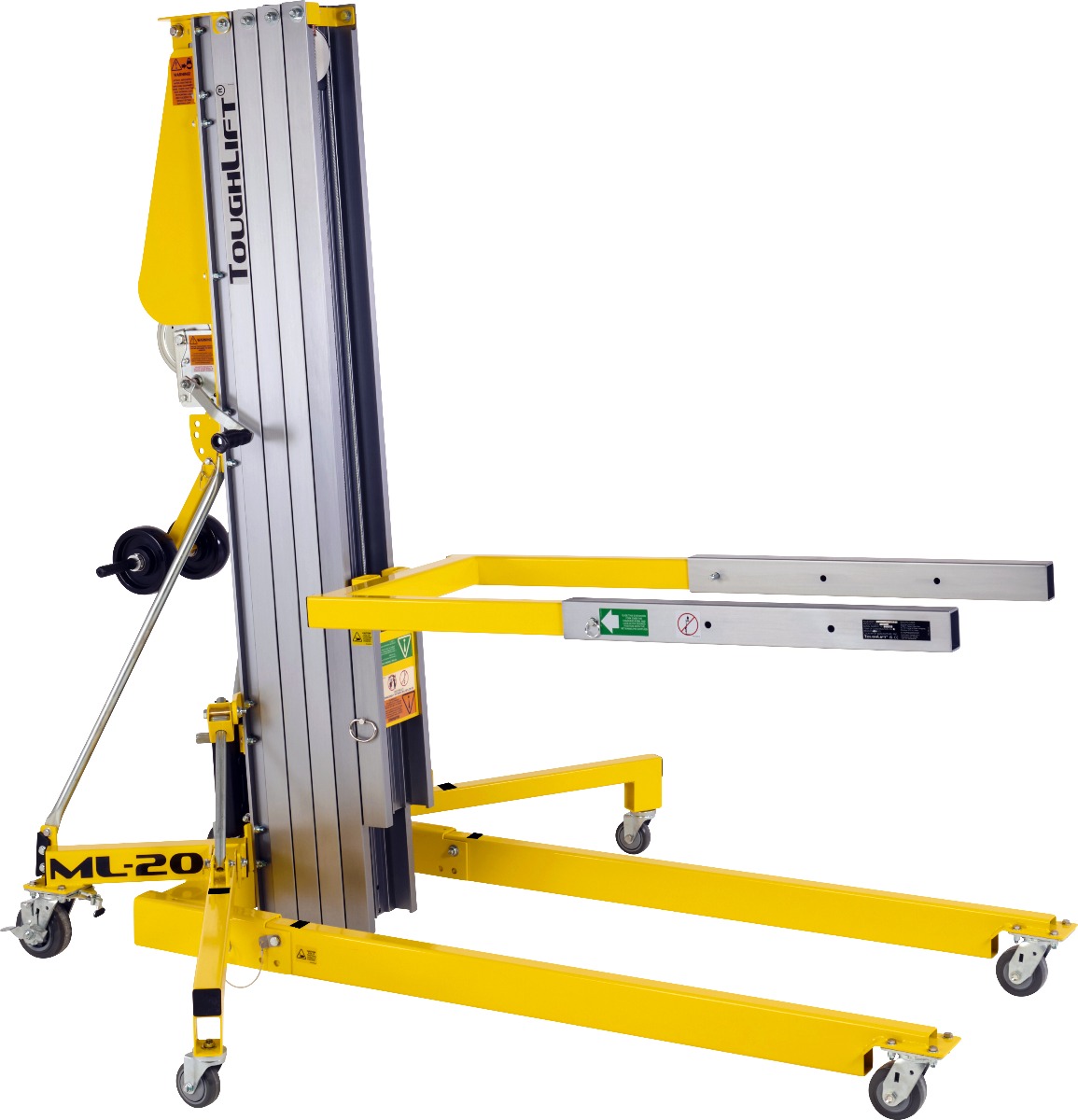

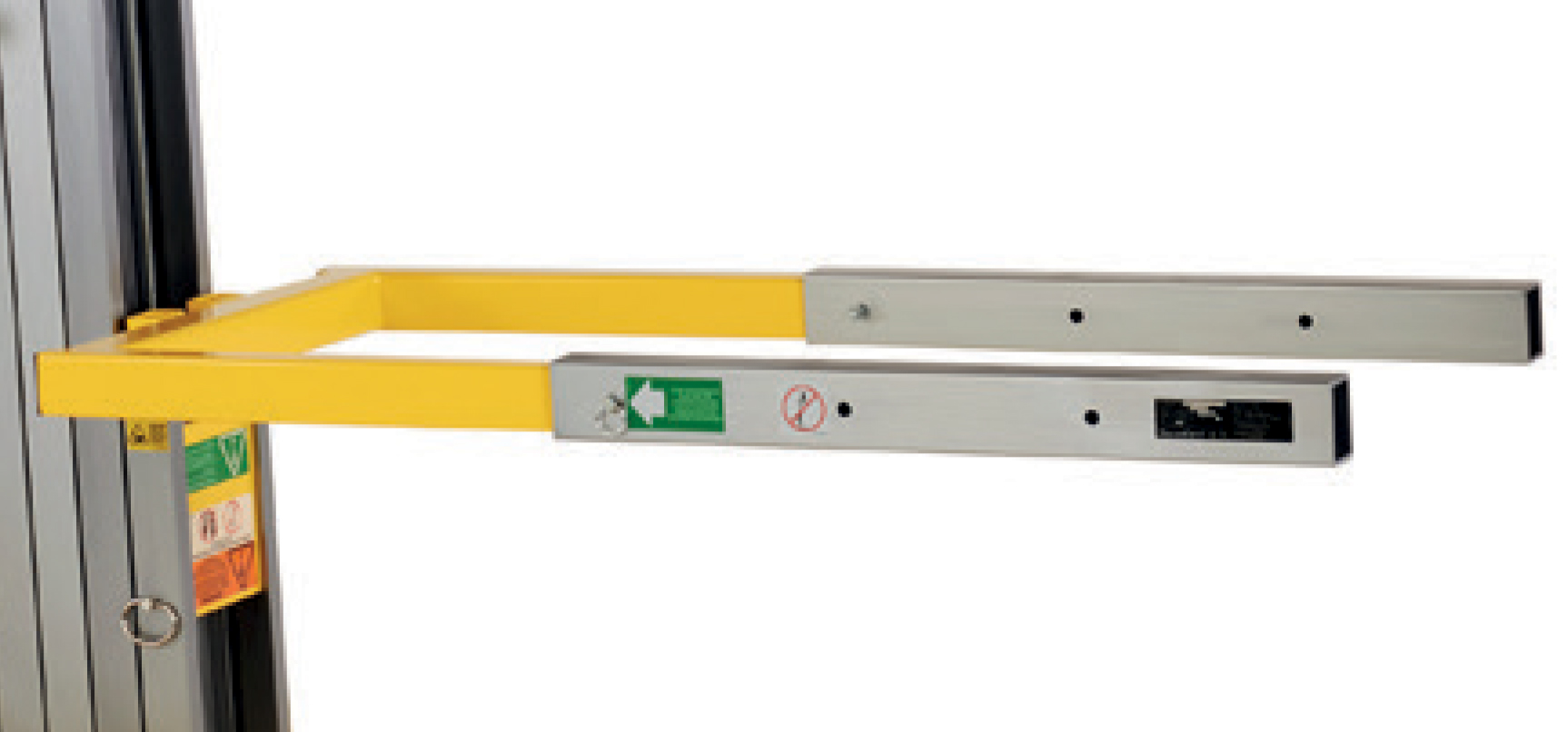

Extension Forks for material lift:
Part No. 660000

The Extension Forks option adds additional fork length – 16.1cm, 39.9cm or 63.2cm - for your Toughlift material lift.

They can be fitted with the Standard Forks inserted up or down in the carriage.

Weight:	4kg (set)
Length:	76.2cm (each)
Width:	5cm (each)
Depth:	7.5cm (each)

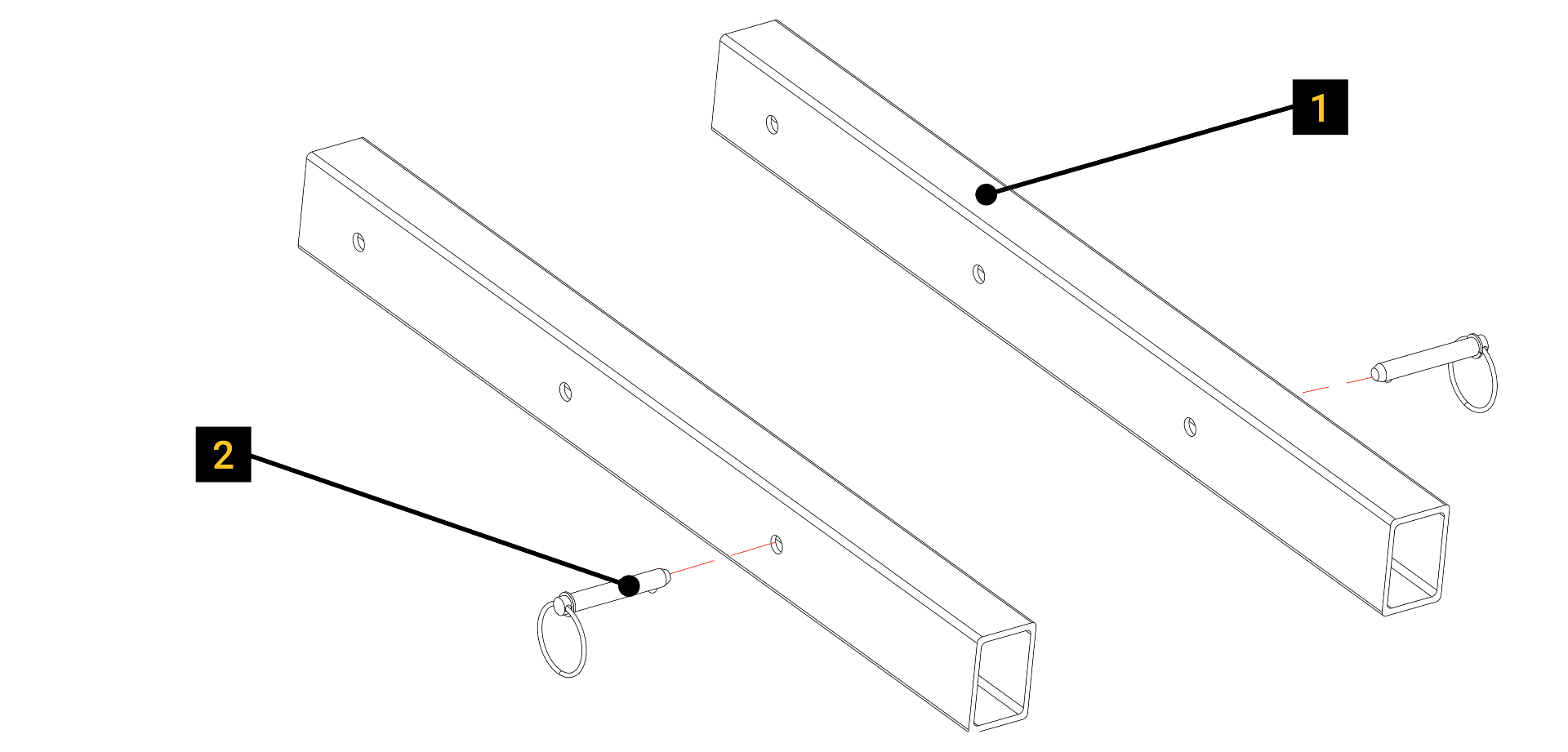

Toughlift Extension Forks Parts

Item	Part No.	Description	Quantity
1	660000	Extension Forks - complete assembly	1
2	660002	Extension Forks retaining pin	2

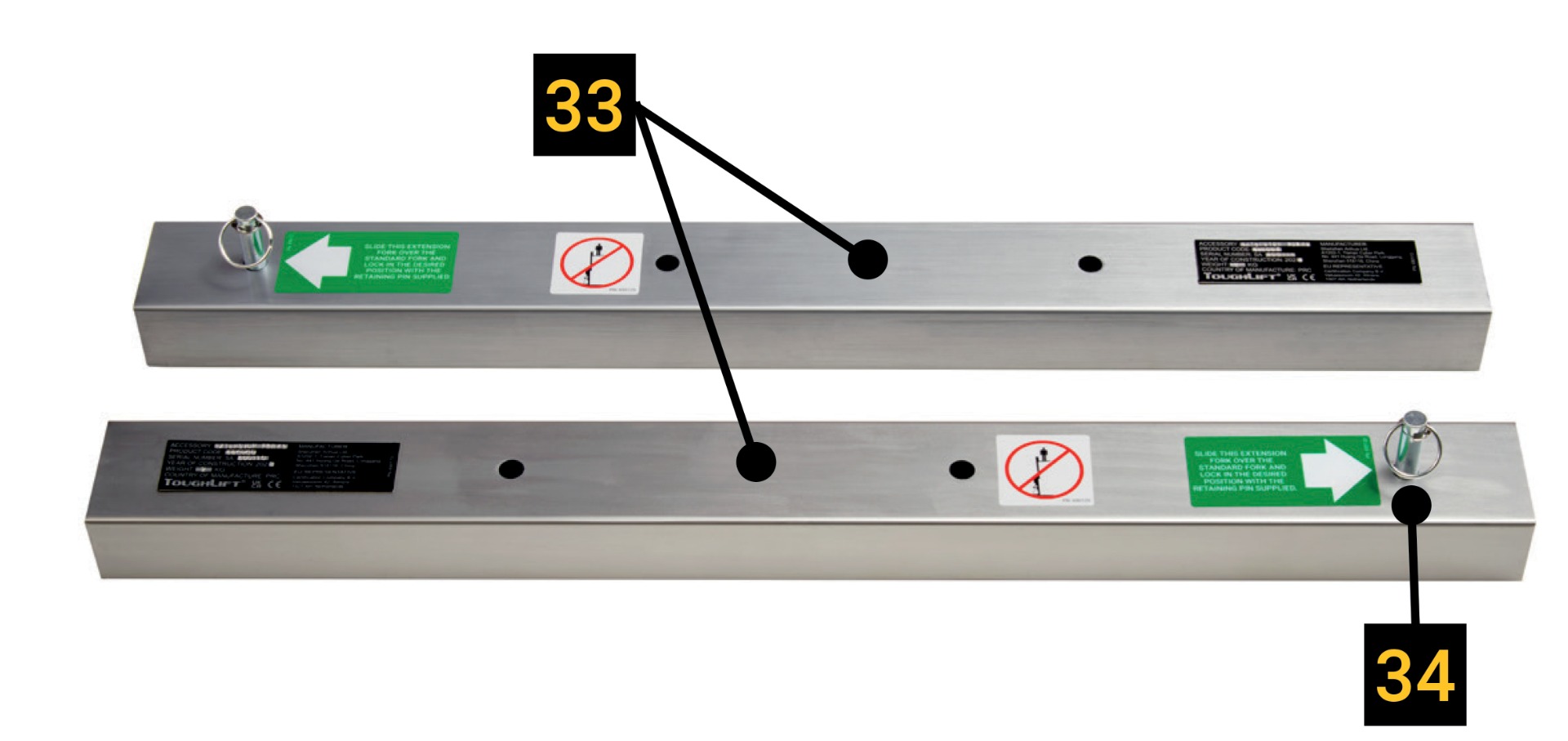

33. Extension Forks

34. Extension fork retaining pin

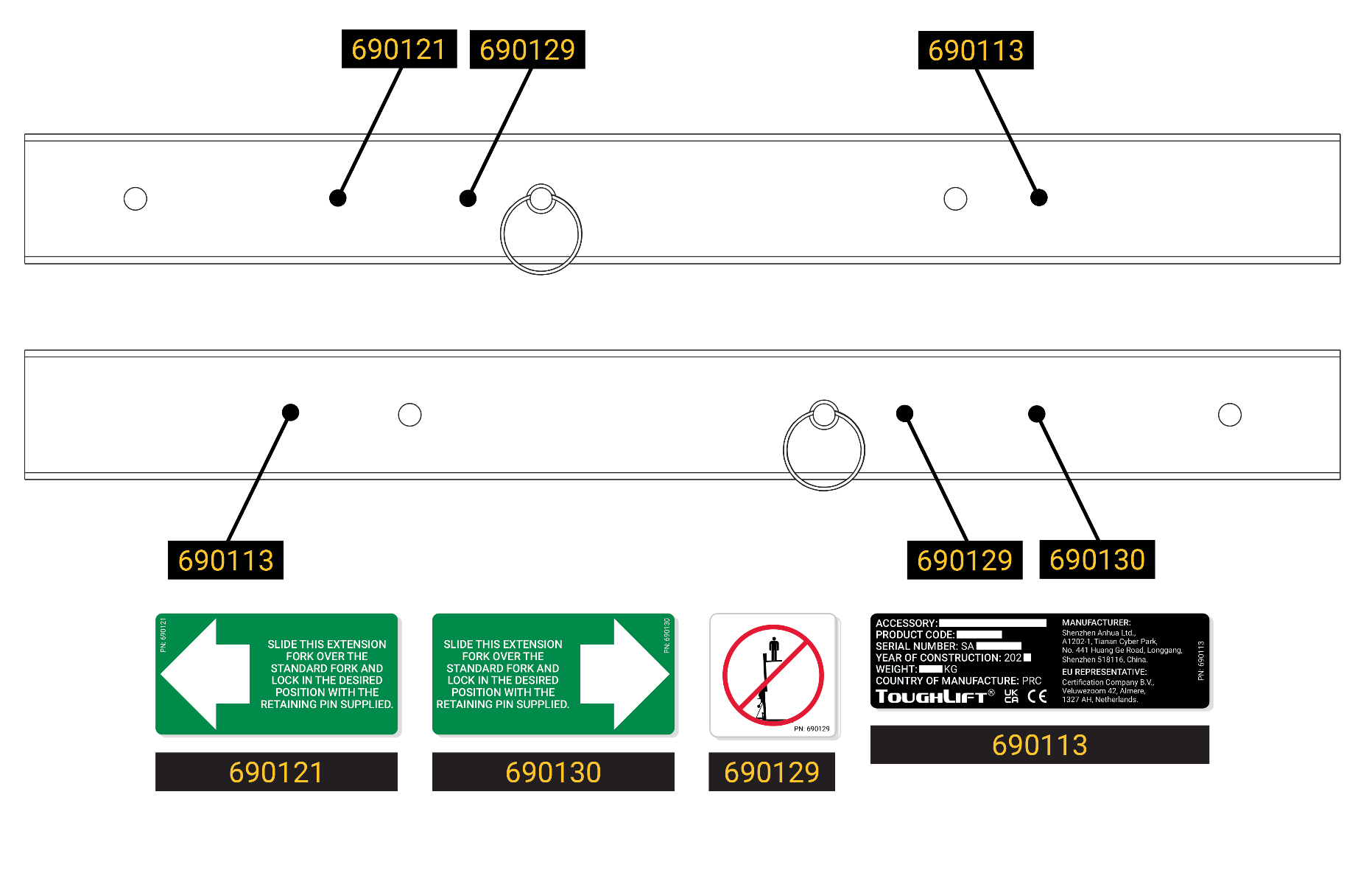

Decals & manufacturer's plate for Material Lift Extension Forks accessory

Part No.	Description	Quantity
690121	Extension Forks setup decal - left fork	1
690130	Extension Forks setup decal - right fork	1
690129	Extension Forks not a personnel lift decal - left & right forks	2
690113	Removable parts plate (3M VHB tape) - left & right forks	2

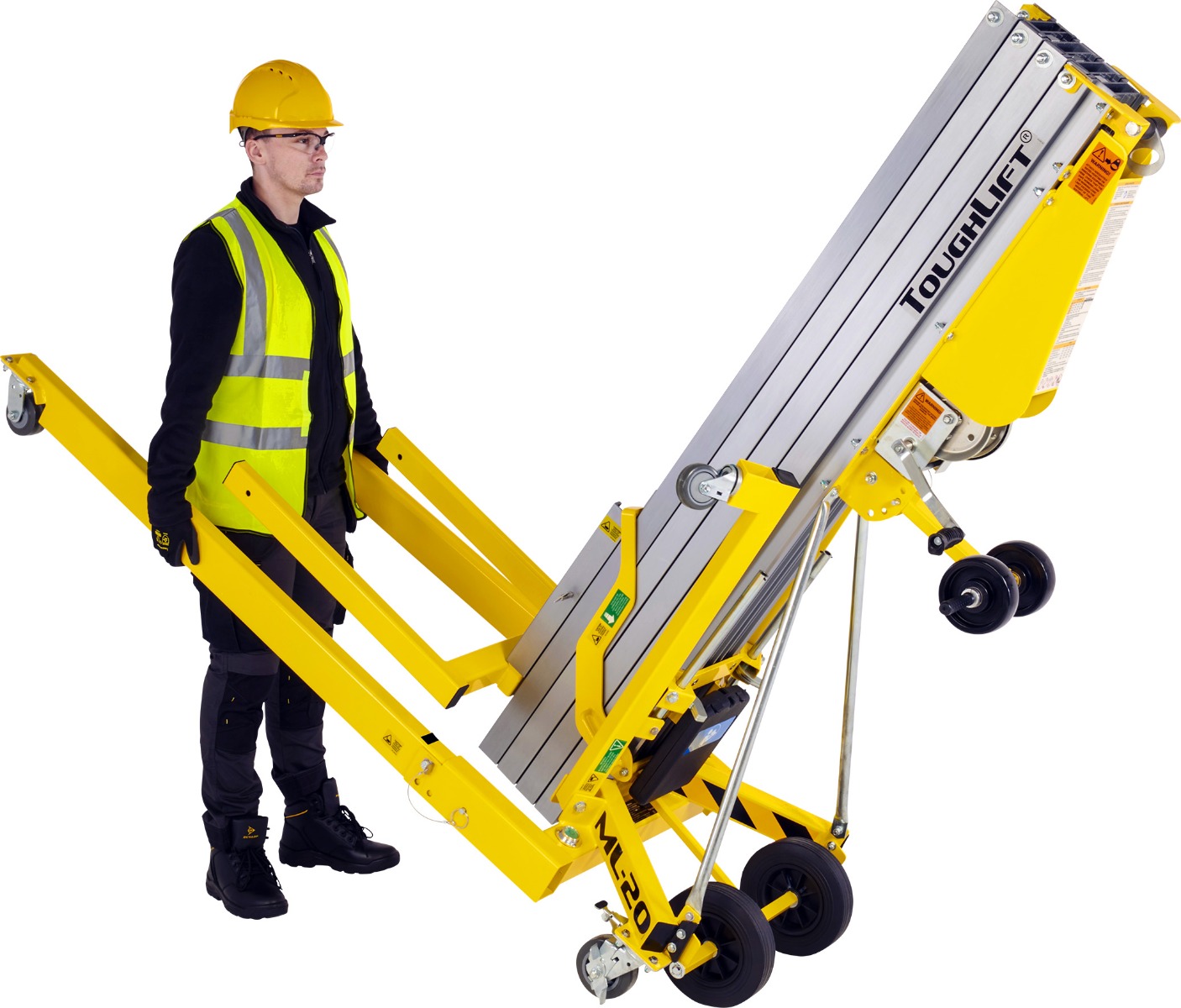

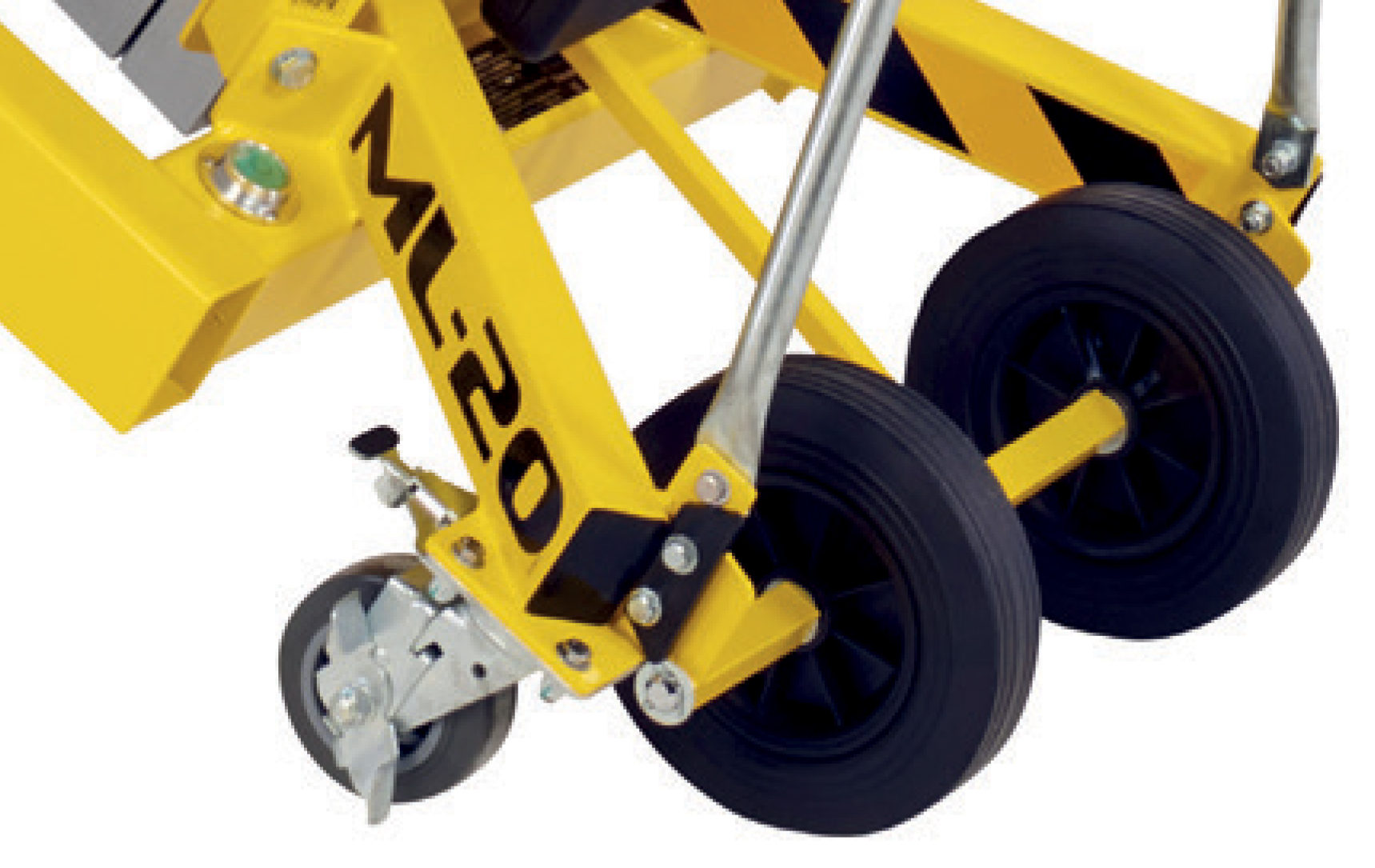

Rough Terrain Wheel Kit for material lift:
Part No. 680000

The Rough Terrain Wheel Kit option enables the Material Lift to be moved around a site much easier, particularly on uneven floors or over debris on the building site

Weight:	8.3kg
Length:	54.8cm
Width:	73cm
Depth:	24.6cm

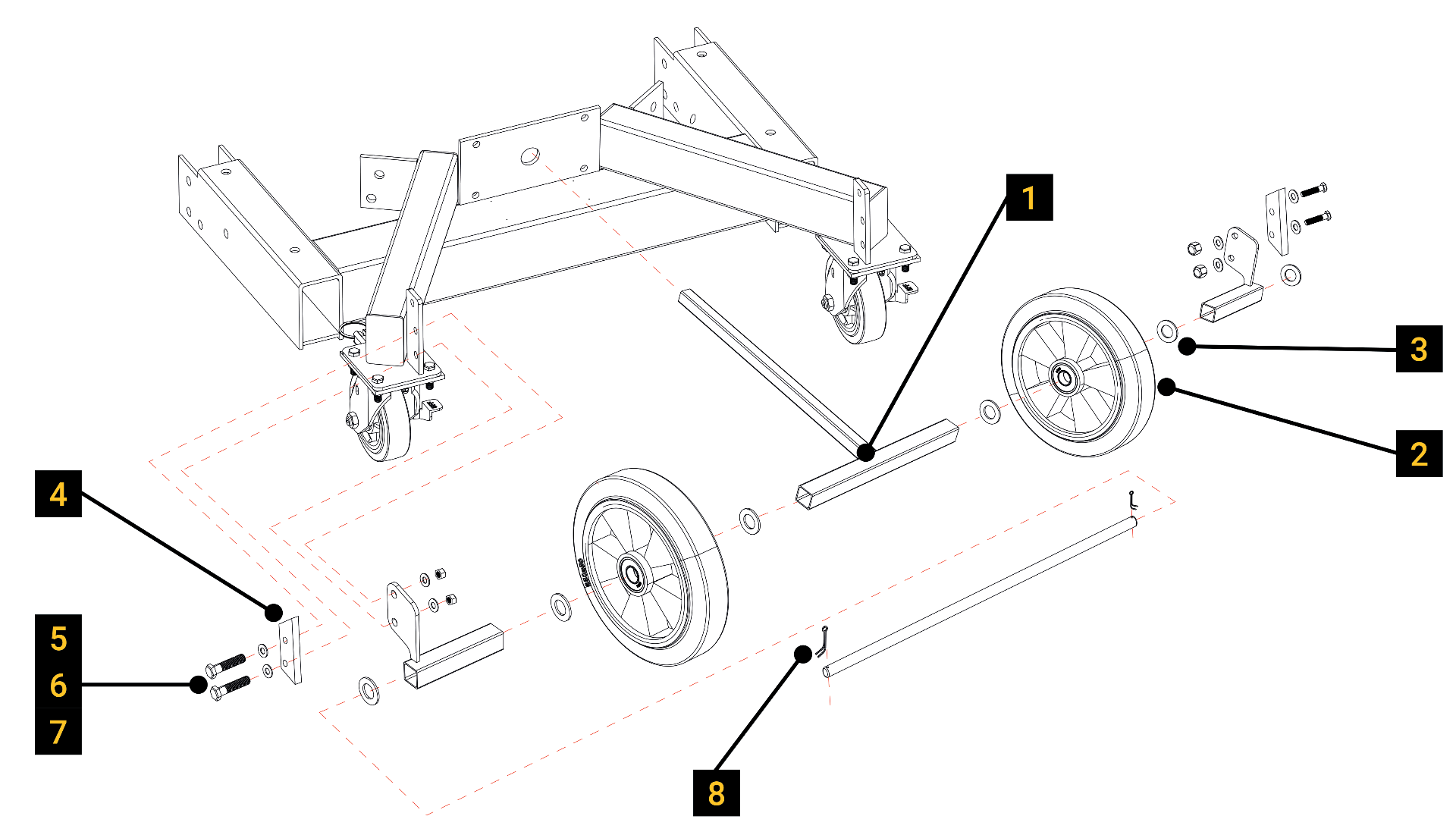

Toughlift Rough Terrain Wheel Kit Parts

Item	Part No.	Description	Quantity
1	680000	Rough Terrain Wheel Kit - complete assembly	1
2	680006	Rough terrain wheel	2
3	680009	Washer M19*2mm	6
4	610039	Black nylon loading block	2
5	620017	Bolt 3/8-16*1-1/2	4
6	630011	Washer 25/3213/321/16	8
7	630010	Nyloc nut 3/8-16	4
8	610029	Cotter pin	2

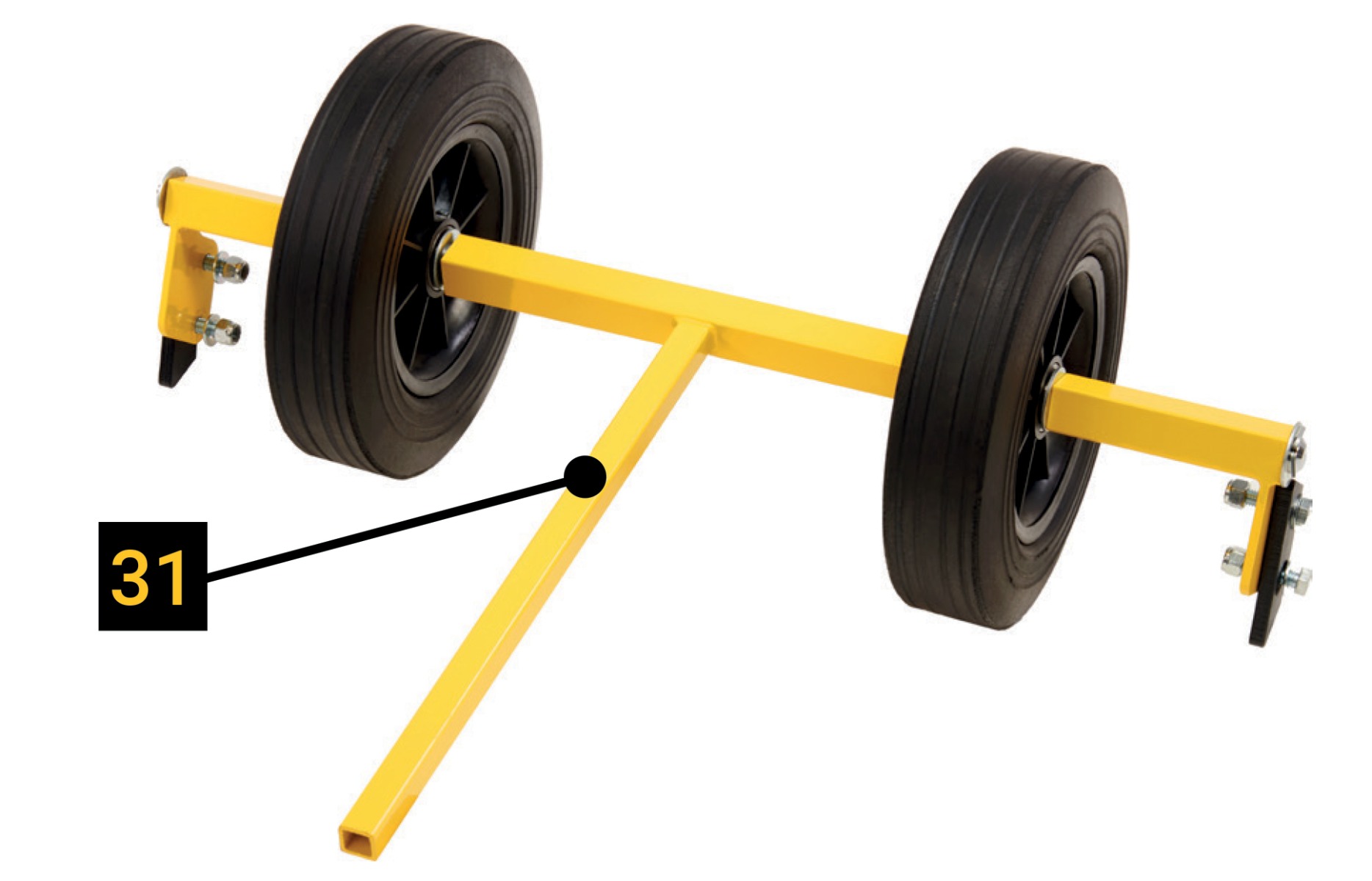

31. Rough Terrain Wheel Kit

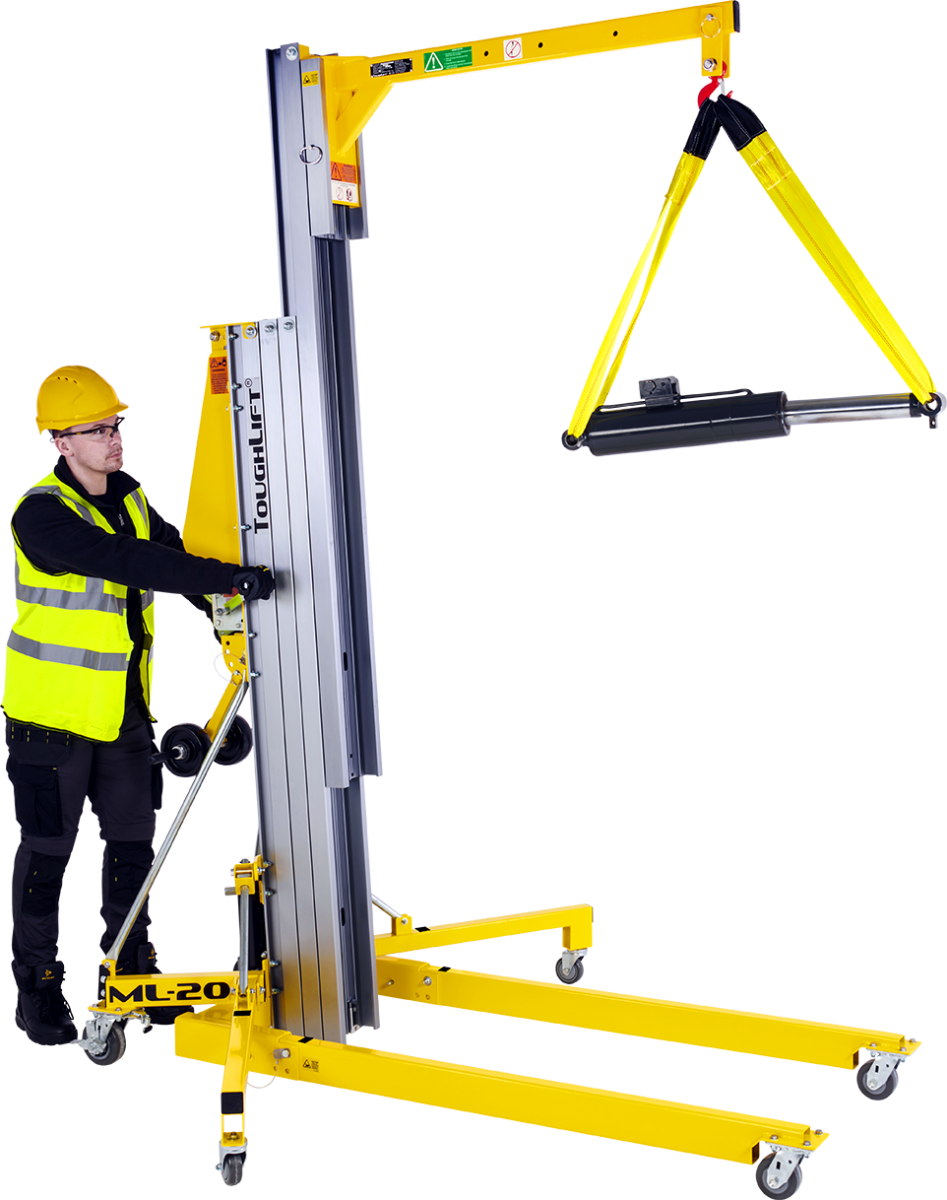

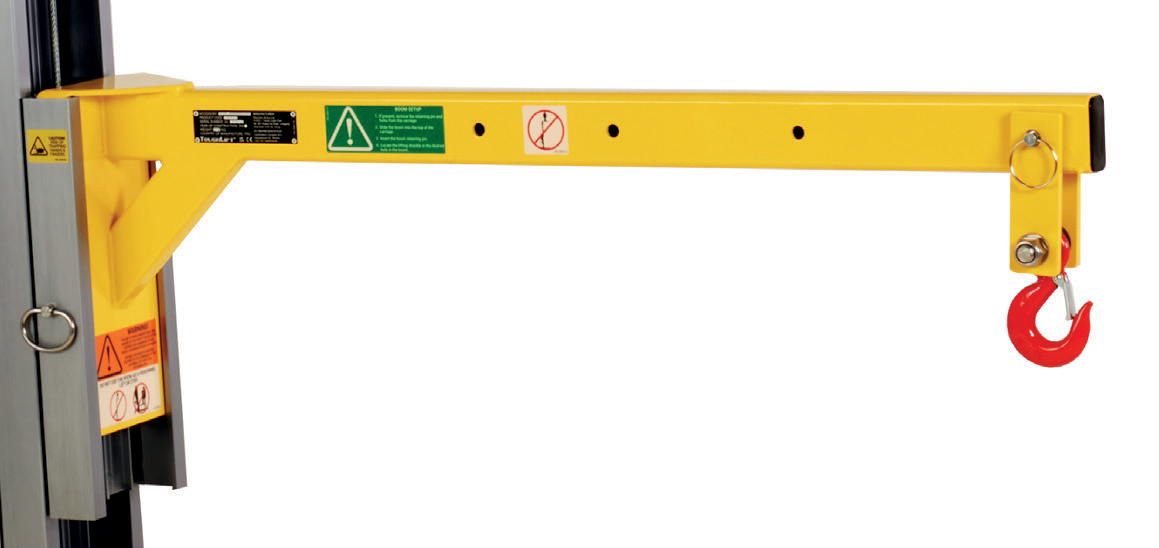

Boom Accessory for material lift:
Part Number: 650000

The Boom is an accessory for the ToughLift^® Material Lifts and enables the machine to operate as a small crane.

Weight:	18kg
*Length:**	115.8cm
Width:	18cm
Depth:	24.6cm

* length is measured from the front of the carriage to the end of the Boom.

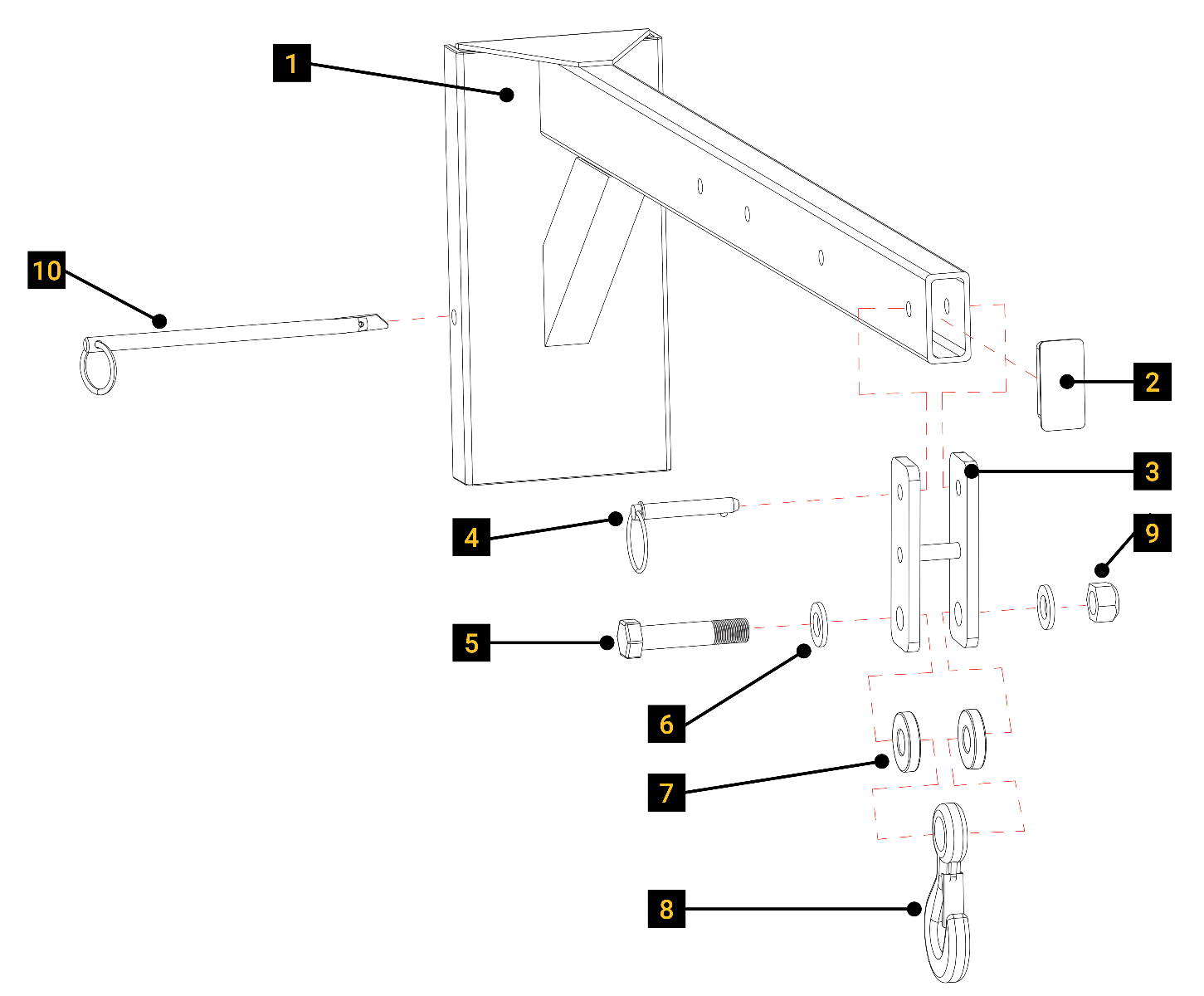

Toughlift Boom Accessory Parts

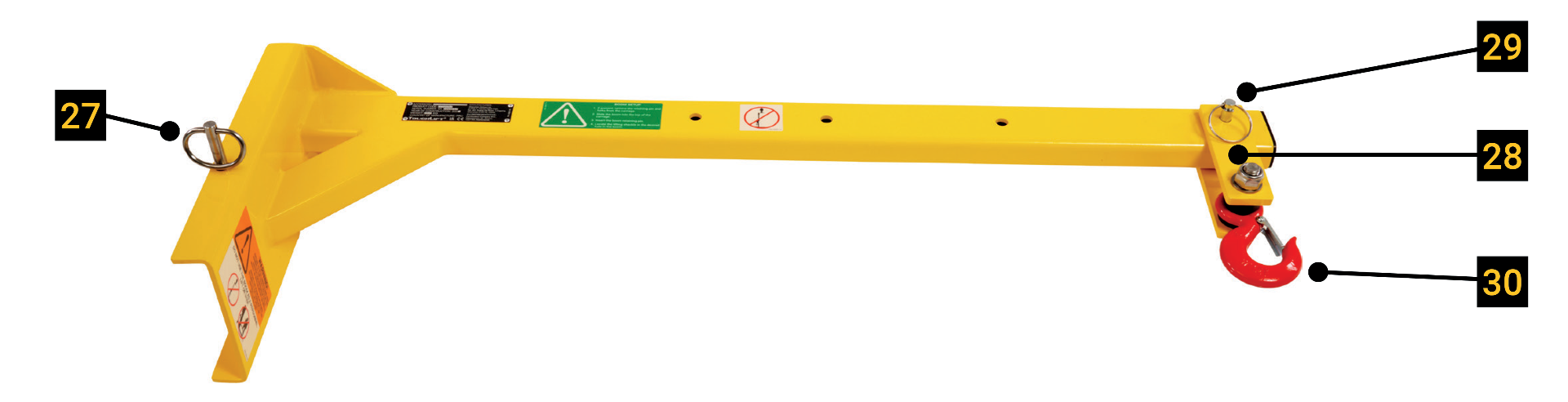

27. Standard forks/boom retaining pin

28. Lifting Shackle

29. Shackle retaining pin

30. Lifting hook

Item	Part No.	Description	Quantity
1	650000	Boom complete assembly	1
2	650010	Boom end cap	1
3	650004	Shackle	1
4	660002	Shackle retaining pin	1
5	650007	Bolt M18*31	1
6	650009	Washer M19*3mm.	2
7	650006	Black nylon spacer	2
8	650005	Lifting hook	1
9	650008	Nyloc nut M18	1
10	640002	Standard Forks & Boom retaining pin	1

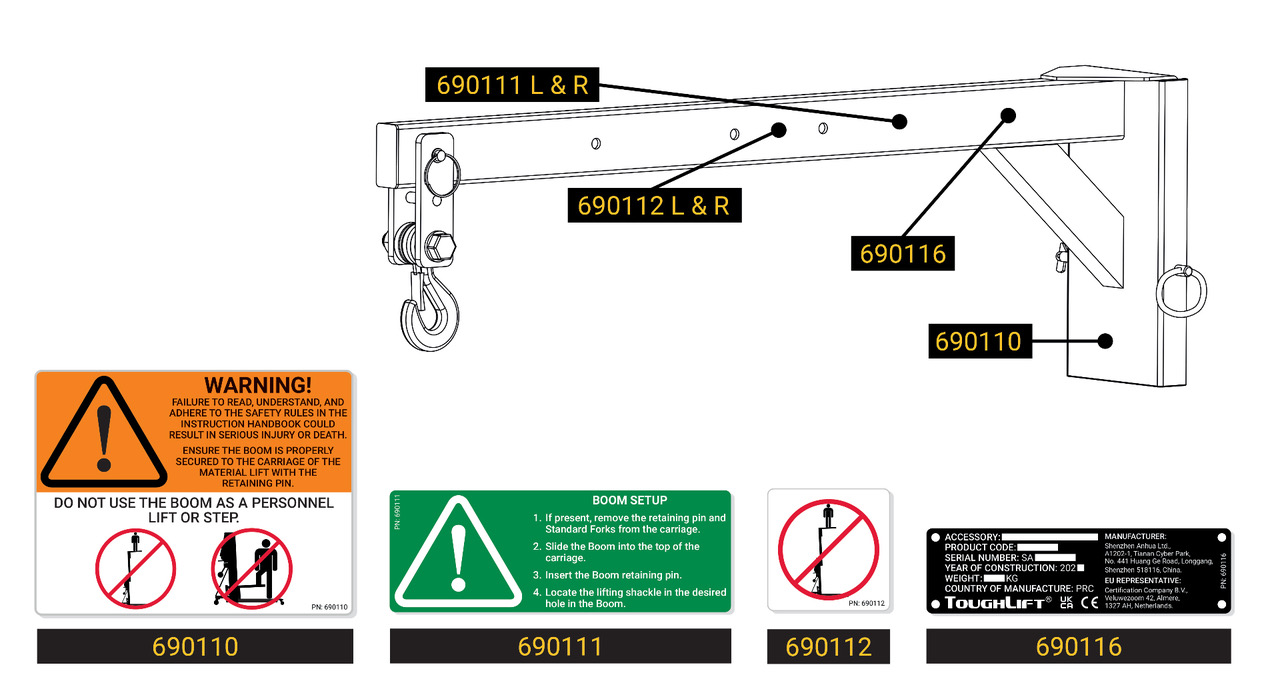

Decals & manufacturer's plate for Material Lift Boom accessory

Part No.	Description	Quantity
690110	Boom safety warning decal	1
690111	Boom setup decal - left & right	2
690112	Boom not a personnel lift decal - left & right	2
690116	Removable parts plate (riveted)	1

ToughLift^® Parts

We have an extensive range of OEM parts for ToughLift^® Material Lifts - many of these material lift parts can be dispatched for next day delivery - call 01480 891251 or email parts@accessplatforms.co.uk for further details.
