The innovative new range of ToughLift® manual material lifts sets new standards in ease-of-use and equipment durability. All four material lifts are quick and simple to set up and fit through a standard single doorway.
Max. Lifting Height: 3.49m
Load Capacity: 454kg
Travel Width: 0.81m
Weight: 129kg
Power Source: Manual
Stock Availability: In Stock
Max. Lifting Height: 4.98m
Load Capacity: 363kg
Travel Width: 0.81m
Weight: 153kg
Power Source: Manual
Stock Availability: In Stock
Max. Lifting Height: 6.46m
Load Capacity: 363kg
Travel Width: 0.81m
Weight: 190kg
Power Source: Manual
Stock Availability: In Stock
Max. Lifting Height: 7.94m
Load Capacity: 295kg
Travel Width: 0.81m
Weight: 214kg
Power Source: Manual
Stock Availability: In Stock
The innovative new range of ToughLift® Material Lifts are designed for lifting materials to enable work to be undertaken at height. The machines can be used indoors and outdoors on solid level ground.

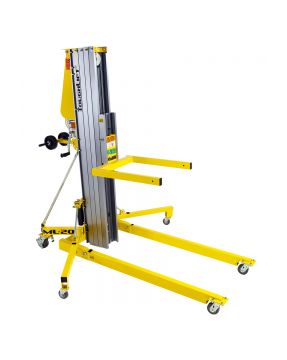

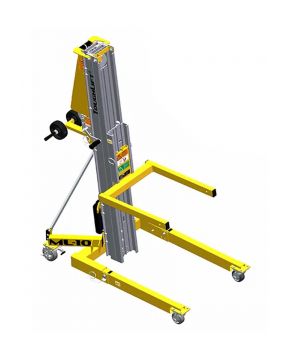

ToughLift® Material Lifts are available in 4 models: ML-10, ML-15, ML-20, and ML-25. The principal difference between the models is their maximum lift heights of 3.49, 4.98, 6.46, and 7.94 metres respectively. All machines are supplied with the Standard Forks load handling attachment, and the ML-20 and ML-25 models are also fitted with stabilisers. With the front legs, and the stabilisers if fitted, in the stowed position all models are just 0.8 metres wide and 2 metres high.
All 4 models include the following features as standard:
Anodised lightweight aluminium mast.
Hard-wearing aluminium mast pulley wheels.
Cable guard with main operational and safety decal.
Hoisting and winching anchor.
Spirit level mounted on the chassis.
E-coated and then powder coated steel fabrications fitted with silicone rubber end caps.
Robust waterproof document holder with A5 Instruction Handbook.

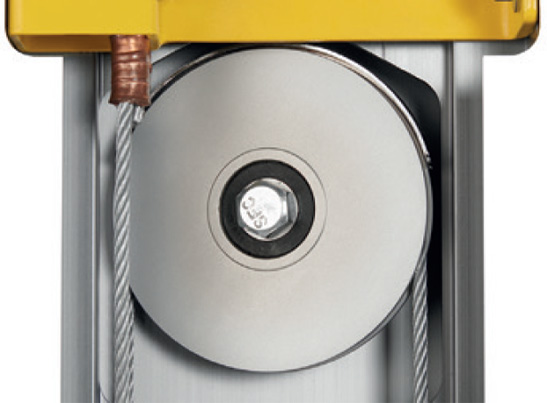

Hard wearing aluminium mast pulley wheels.

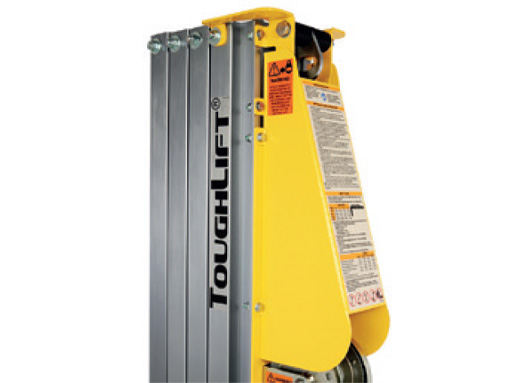

Cable guard with operational and safety decal.

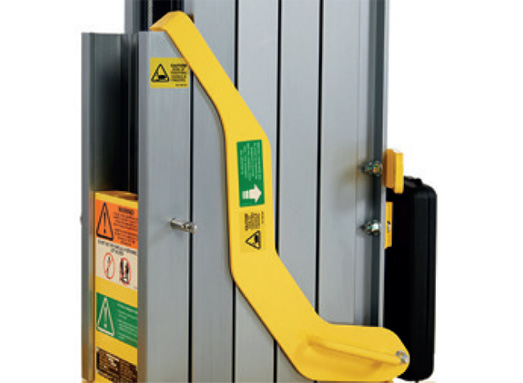

Carriage lock operates in all machine configurations.

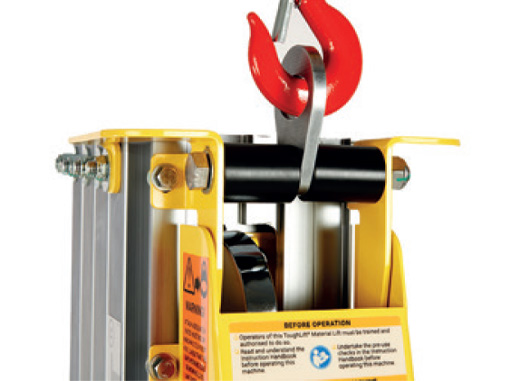

Hoisting and
winching anchor.

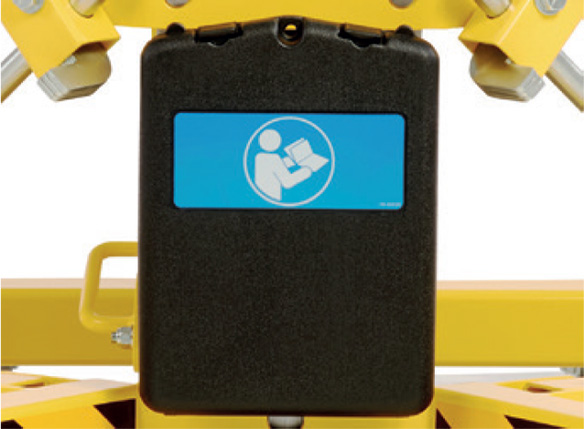

Robust waterproof
document holder.

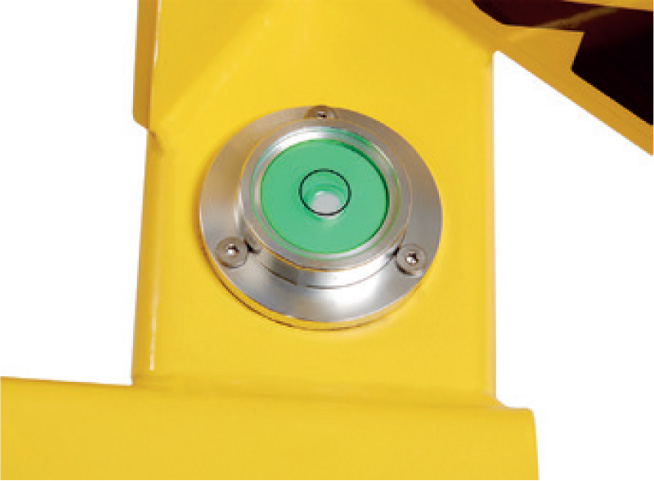

Spirit level to aid the
operator to level the chassis.
Looking for advice on operating, sales, parts or maintaining your material lift
Contact the APS team on 01480 891251 or email sales@accessplatforms.co.uk
MODELS | ||||
---|---|---|---|---|
ML-10 | ML-15 | ML-20 | ML-25 | |
LOAD CAPACITY, WEIGHT, & OPERATING ANGLE | ||||
Load capacity | Please refer to the table below for the load capacities at different load centres. | |||
Machine weight (1) | 129kg | 153kg | 190kg | 214kg |
Maximum allowable chassis inclination | 0° | 0° | 0° | 0° |
DIMENSIONS | ||||
Working Heights | ||||
With Standard Forks down | 2.97m | 4.46m | 5.94m | 7.42m |
With Standard Forks up | 3.49m | 4.98m | 6.46m | 7.94m |
With Load Platform forks down (2) | 2.97m | 4.46m | 5.94m | 7.42m |
With Load Platform forks up (2) | 3.49m | 4.98m | 6.46m | 7.94m |
With Boom (3) | 3.28m | 4.76m | 6.25m | 7.42m |
Other Dimensions | ||||
Width with stabilisers deployed | N/A | N/A | 1.84m | 1.84m |
Length with front legs deployed | 1.51m | 1.88m | 2.06m | 2.06m |
Stowed width | 0.81m | 0.81m | 0.81m | 0.81m |
Stowed length | 0.76m | 0.76m | 0.76m | 0.81m |
Stowed height | 2.02m | 2.02m | 2.02m | 2.02m |
Ground clearance | 52mm | 52mm | 52mm | 52mm |
AVERAGE TURNS OF WINCH PER METRE | ||||
Carriage moving | 42/m | 42/m | 42/m | 42/m |
Mast moving | 19/m | 19/m | 19/m | 19/m |
NOISE EMISSIONS | <70dBA |
LOAD CENTRE | |||||||||
---|---|---|---|---|---|---|---|---|---|
MODEL | 46cm | 51cm | 56cm | 61cm | 66cm | 71cm | 76cm | ||
ML-10 | 454kg | 454kg | 454kg | 454kg | 414kg | 374kg | 335kg | ||
ML-15 | 363kg | 363kg | 363kg | 363kg | 346kg | 329kg | 312kg | ||
ML-20 | 363kg | 332kg | 303kg | 272kg | 255kg | 238kg | 221kg | ||
ML-25 | 295kg | 264kg | 235kg | 204kg | 193kg | 181kg | 170kg |
LOAD CENTRE | |||||||||
---|---|---|---|---|---|---|---|---|---|
MODEL | 81cm | 86cm | 91cm | 97cm | 102cm | 107cm | |||
ML-10 | 295kg | 272kg | 249kg | 227kg | 204kg | 181kg | |||
ML-15 | 295kg | 281kg | 268kg | 254kg | 240kg | 227kg | |||
ML-20 | 204kg | 195kg | 186kg | 177kg | 168kg | 159kg | |||
ML-25 | 159kg | 150kg | 141kg | 132kg | 122kg | 113kg |
Looking for advice on operating, sales, parts or maintaining your material lift
Contact the APS team on 01480 891251 or email sales@accessplatforms.co.uk

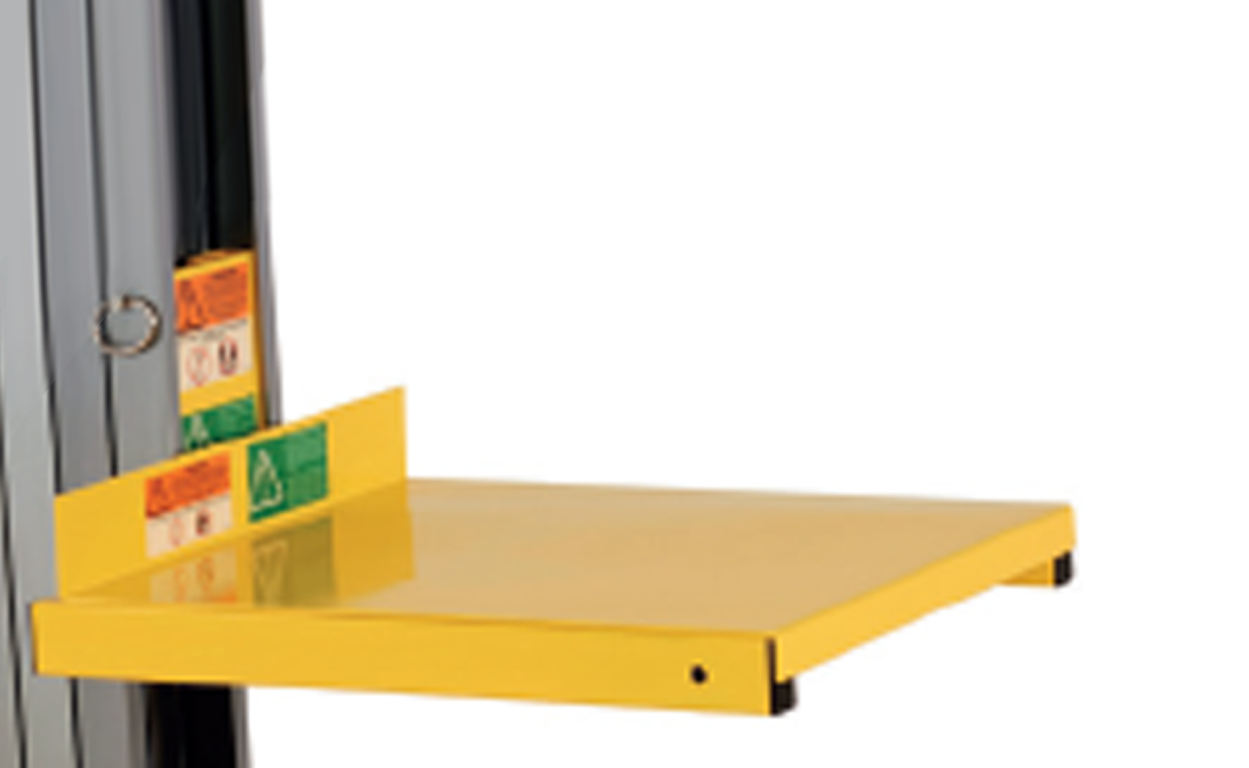

Load Platform

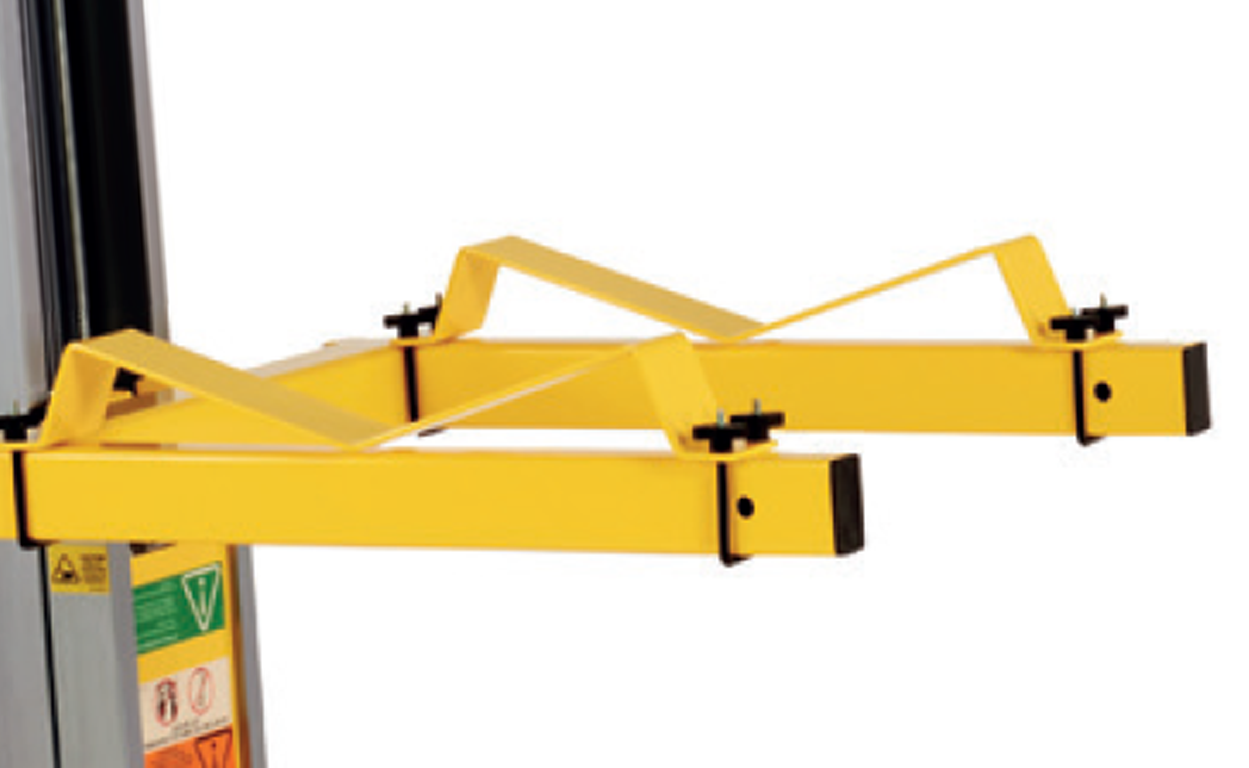

Pipe Cradle

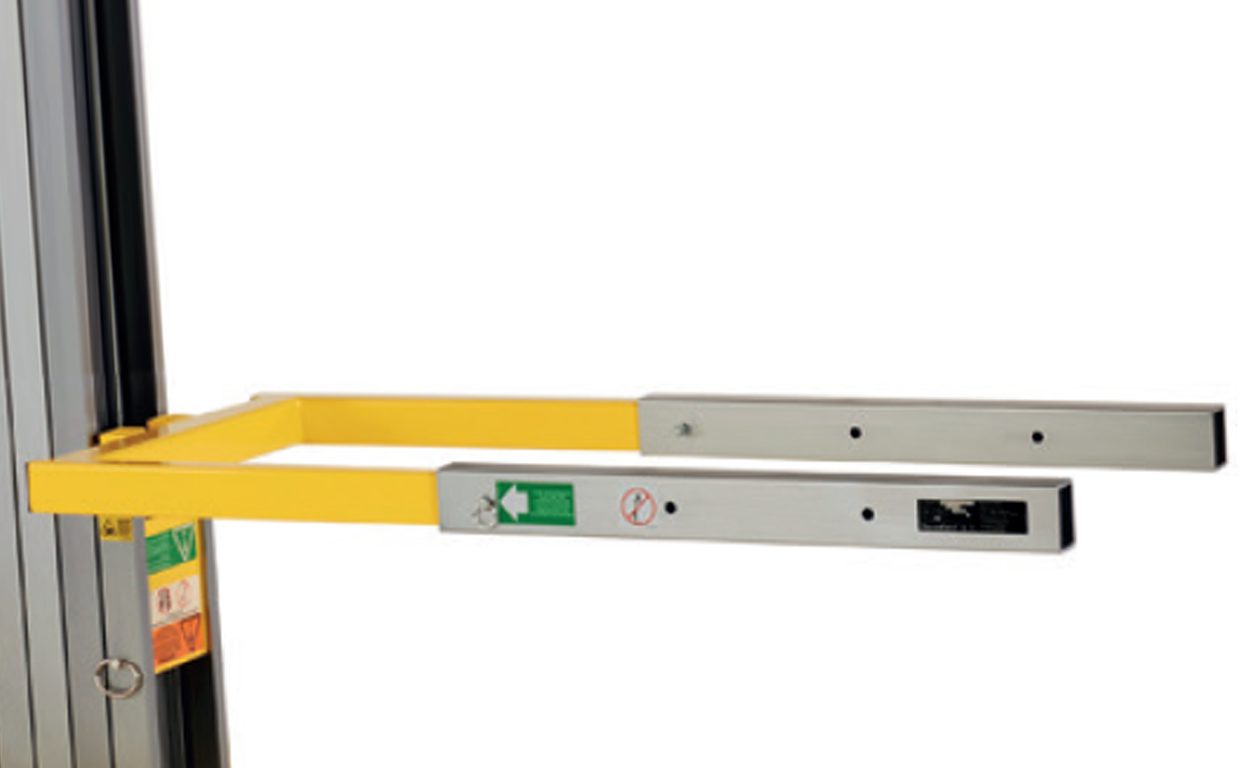

Extension Forks

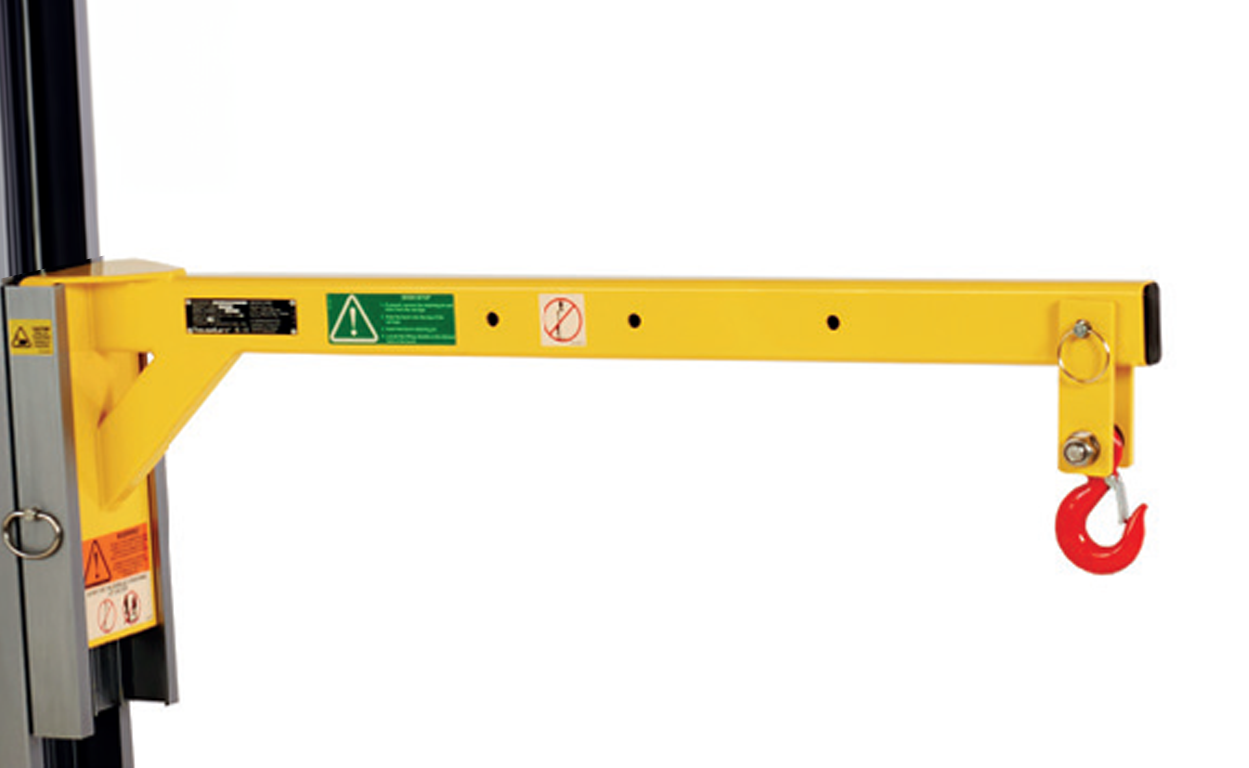

Boom

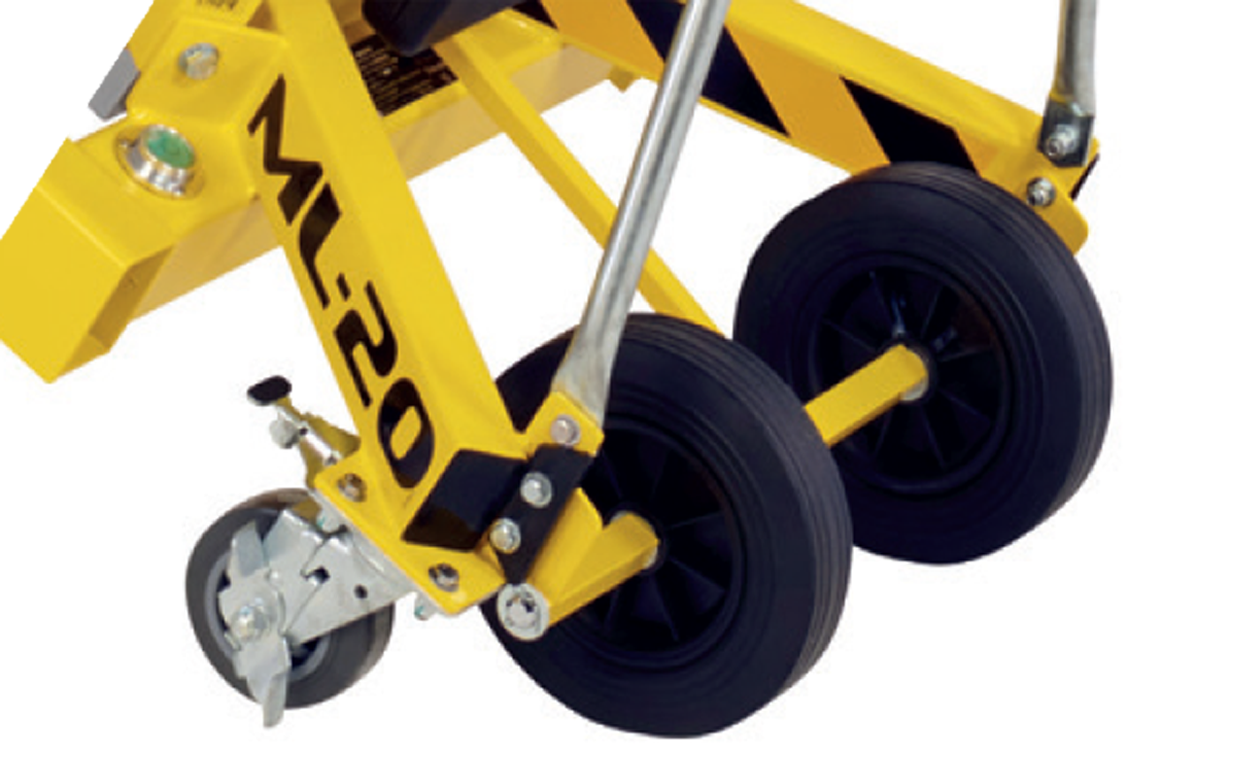

Rough Terrain Wheel Kit

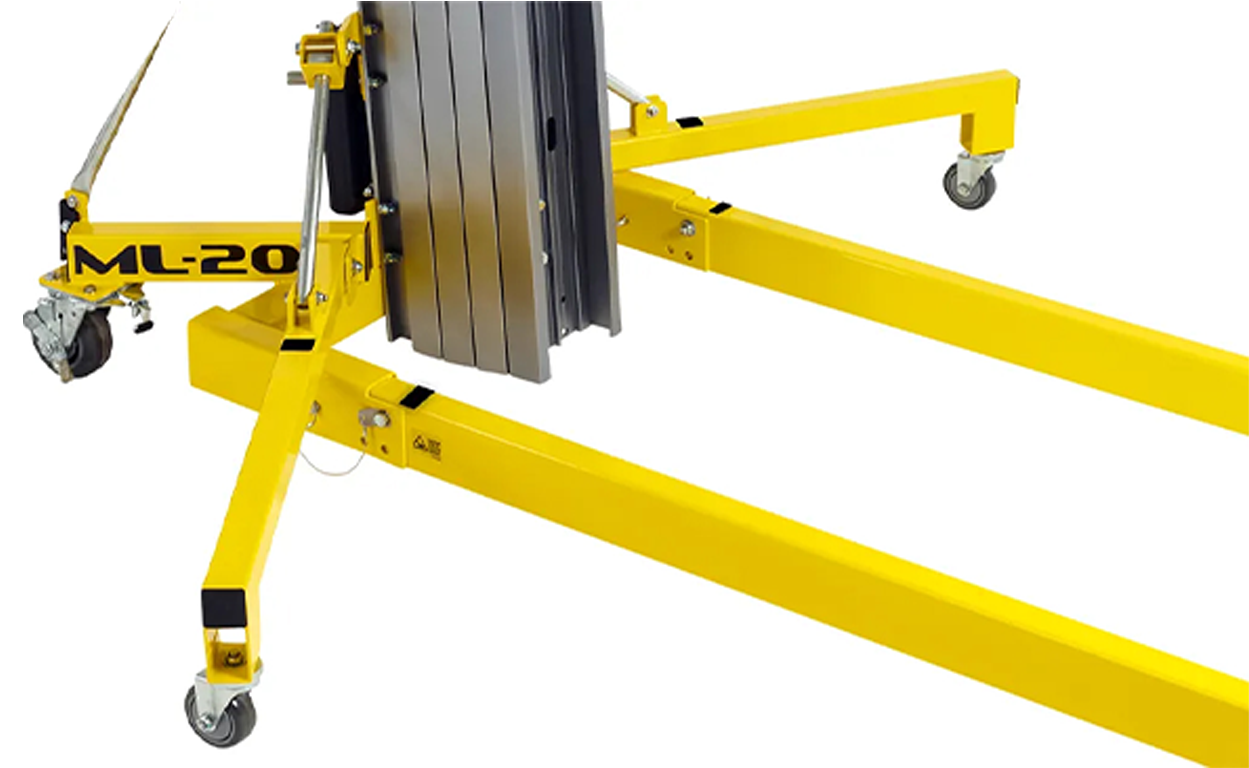

Stabilisers
There is a wide range of funding your material lift purchase. Here are some of the most common types - further information can be found here
Contract Hire - No initial capital outlay and regular monthly payments, typically over three to five years. LOLER testing and servicing (link) is typically included in the payment.
Hire Purchase - Spreading the cost by paying a deposit along with the VAT element at the start, then spreading the remaining balance over an agreed period (3 to 5 years is common)
Lease Purchase - a form of hire purchase where the larger balloon payment is at the end of the finance. Typically results in lower monthly payments for your material lift
Operating Lease - Long term hire with smaller initial finance outlay. Material lift returns at the end of the lease.
Rent to Buy - enables you to use the cherry picker for an agreed period before deciding whether to purchase it or simply return.
Please note all instructions and specifications provided are from manufacturer’s handbook are correct at the time of entering. All speciifcations are subject to change without notice or obligation. If you are in any doubt – please consult your APS representative

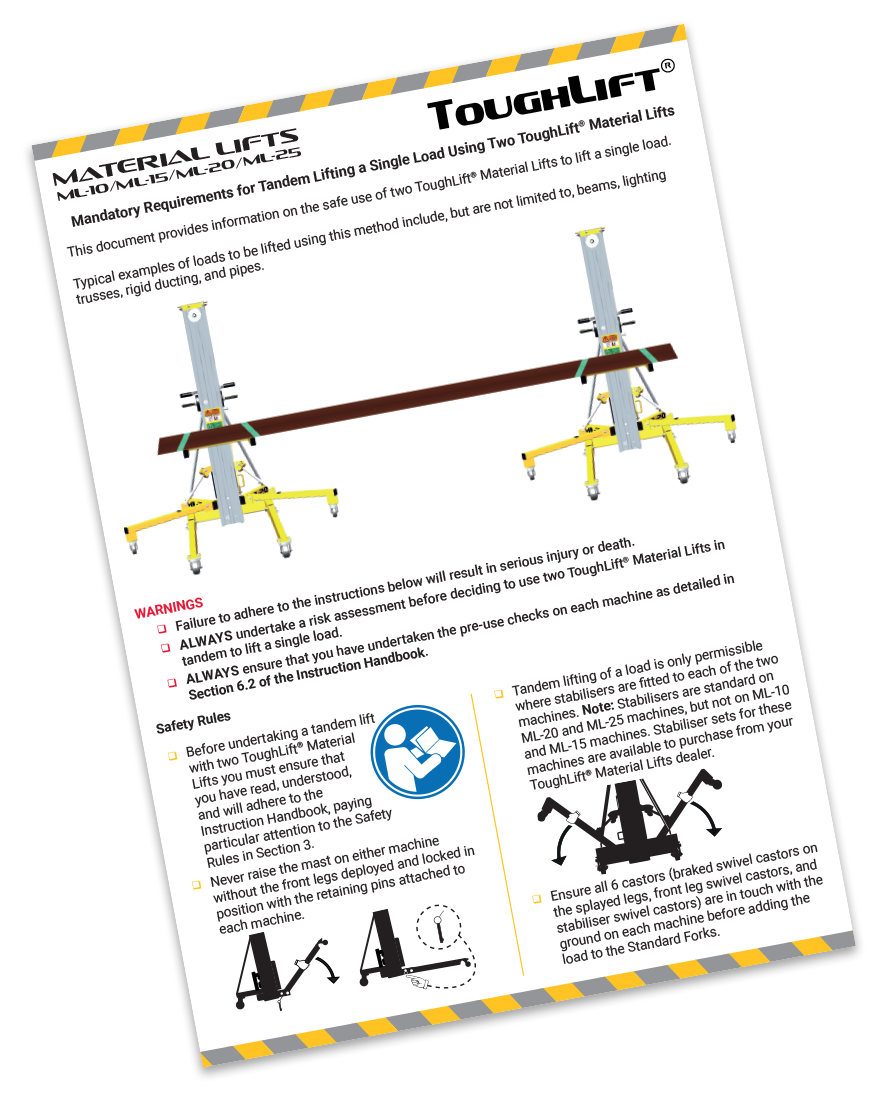

Performing a lift on a single loads such as beams, lighting trusses, ducting and pipes can be performed productively using two ToughLift® material lifts together. This is commonly called a tandem lift.
Please see instructions in the pdf download highlighting requirements for performing such a lift.

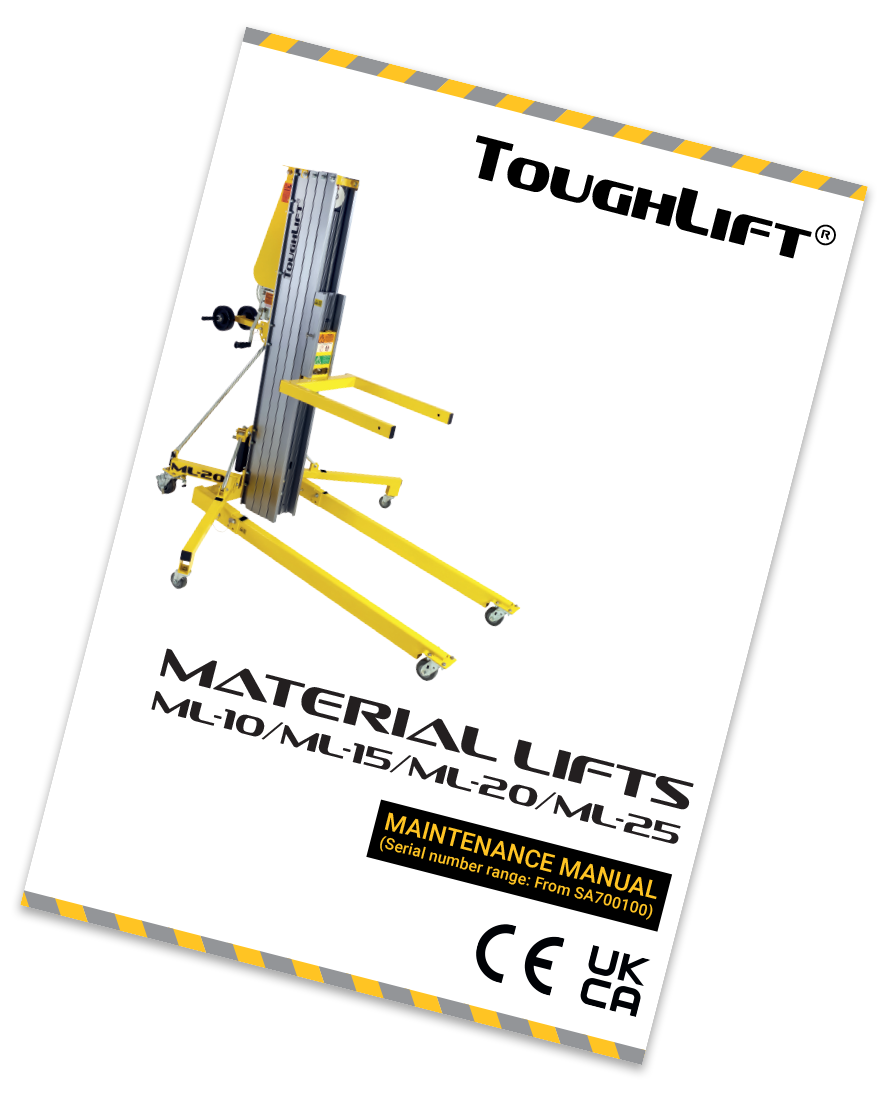

The ToughLift® Maintenance Manual provides detailed scheduled maintenance information, troubleshooting, repair procedures, and exploded drawings with parts lists, to enable a qualified maintenance engineer or technician to undertake work on ToughLift® Material Lifts.
If you would like to book a service, order parts or require advice regarding maintaining your Material lift – contact the APS AfterSales team on 01480 891251 or email sales@accessplatforms.co.uk
Looking for advice on operating, sales, parts or maintaining your material lift
Contact the APS team on 01480 891251 or email sales@accessplatforms.co.uk
You can’t get better value than our fixed-price service plans. Routine servicing and maintenance will not only help keep your access platform reliable (and legally compliant under LOLER 98 and Provision and Use of Work Equipment Regulations 1998 (PUWER)), it will give you an early warning of any potential problems that could result in unexpected, costly repairs and unnecessary downtime.
There are no hidden extras - pricing is inclusive of labour, travel time, mileage and any relevant consumables detailed in the service plan.
Typical Service plan
LOLER stands for “Lifting Operations and Lifting Equipment Regulations 1998”. These regulations were created under the Health and Safety at Work Act with the aim to reduce the risk of injury from using lifting equipment at work.
LOLER regulations apply to people and companies who operate or have control over lifting equipment, whether they own the equipment or not.
A LOLER inspection involves a “thorough examination” of the equipment in question to ensure it is fit for purpose and safe to use. The inspections must be carried out by a competent person and any defects must be reported to the person responsible for the equipment and the relevant enforcing authority.
Lifting equipment used at work also comes under the Provision and Use of Work Equipment Regulations 1998 (PUWER). PUWER requires that all equipment provided for use at work is suitable and safe for the intended use, is used by adequately trained people, is maintained correctly and is accompanied by suitable health and safety measures.
Lifting equipment must comply with both PUWER and LOLER regulations, which include extra requirements specific to lifting equipment.
Looking for advice on operating, sales, parts or maintaining your material lift
Contact the APS team on 01480 891251 or email sales@accessplatforms.co.uk
Operator training is not only good practice, it’s a legal requirement. We offer a range of nationally recognised training courses designed to equip you and your team with the necessary skills and knowledge to work safely at height, reducing the risk of accidents and ensuring you conform to your legal obligations.
We stock a wide variety of OEM parts for Material Lifts, many in stock for next day delivery.
For a comprehensive breakdown of parts for your ToughLift® and accessories please visit our ToughLift® Parts page
