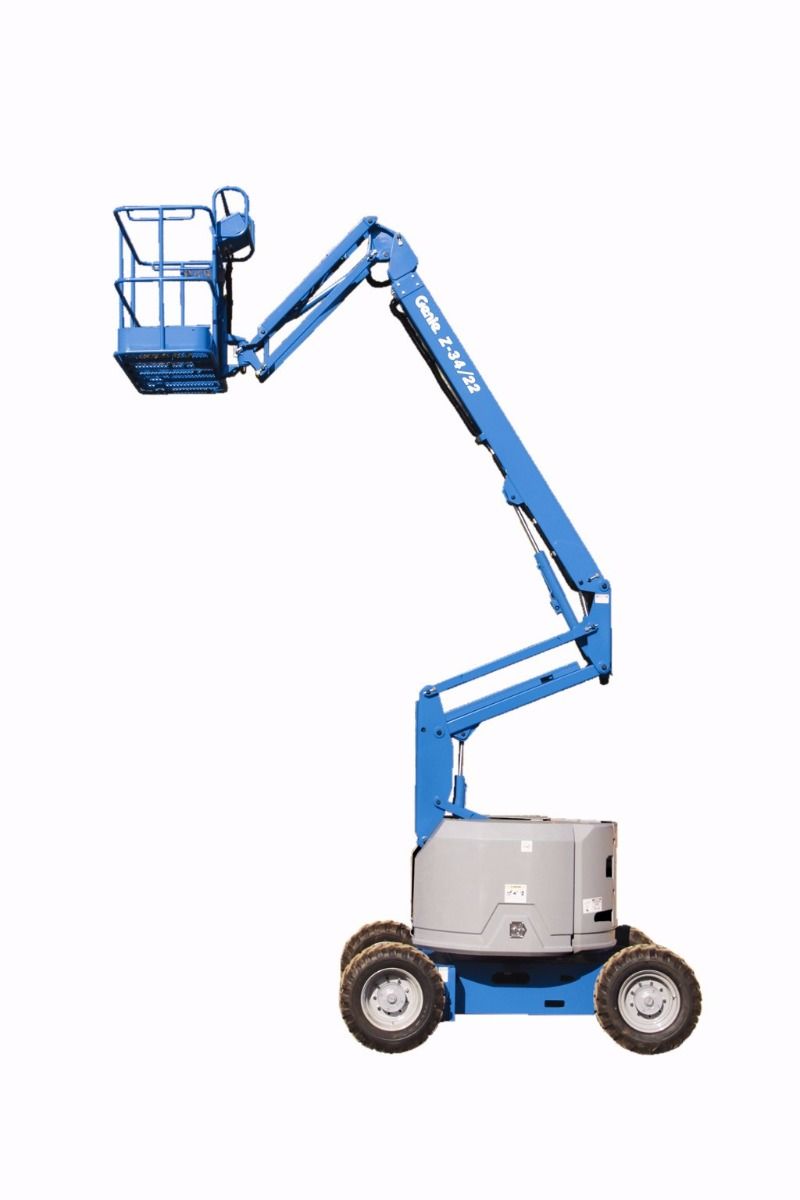

Genie Z-34/22 IC
Genie Z-34/22 IC Key Facts:
-
Max. Working Height:
12.62m
-
Max. Horizontal Outreach:
6.78m
-
Travel Width:
1.85m
-
Lift Capacity:
227kg
-
Weight:
4,929kg
-
Power Source:
Diesel
NEED SOME HELP?
Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email sales@accessplatforms.co.uk
Genie Z-34/22 IC Key Facts:
- 2WD or 4WD diesel available
- 2-speed hydraulic motors optimise torque and speed and torque
- Zero tail swing in all positions; ideal for working in tight spaces
- Dual riser enables boom elevation without retraction or extension
- Also available powered by DC electric or Bi-Energy

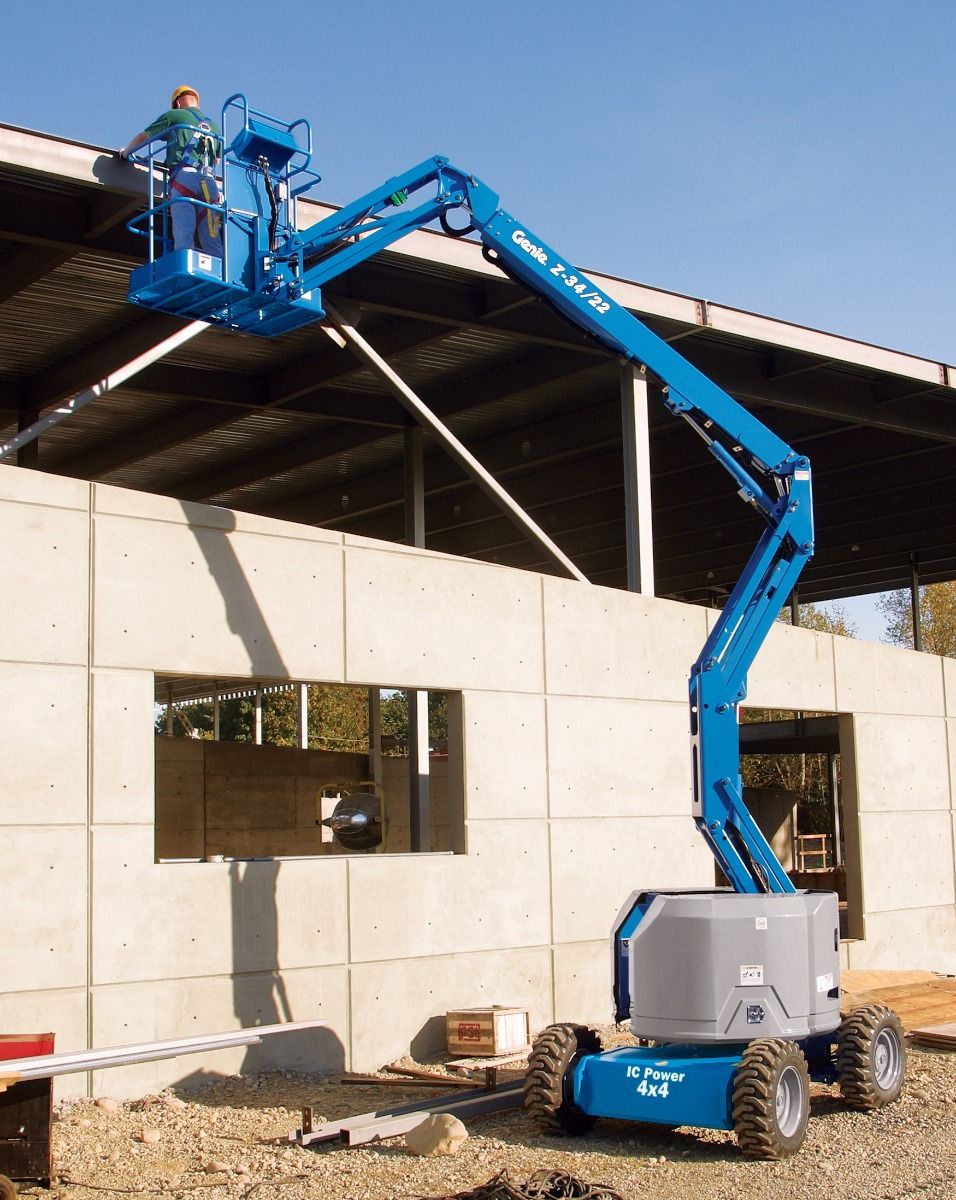

The Genie Z-34/22 IC provides a working height of 12.62m, outreach of 6.78m and 4.6m of “up and over” clearance. Ideal for operating in confined spaces, this diesel-powered boom elevates without extending over either the front or rear of the chassis. Choose from 2WD or powerful 4WD for rough terrain. Standard features of the Genie Z-34/22 IC include a 1.2m articulating jib.
Specifications
| Max. Working Height | 12.62m |
|---|---|
| Max. Horizontal Outreach | 6.78m |
| Lift Capacity | 227kg |
| Power Source | Diesel |
| Weight | 4,929kg |
| Travel Width | 1.85m |
| Lifting Mechanism | Articulated Boom |
| Chassis Type | RT Diesel Self propelled |
