Genie TZ-50
Genie TZ-50 Key Facts
-
Max. Working Height:
17.09m
-
Max. Horizontal Outreach:
8.89m
-
Travel Width:
1.68m
-
Lift Capacity:
200kg
-
Weight:
2,025kg
-
Power Source:
Battery
NEED SOME HELP?
Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email sales@accessplatforms.co.uk
Genie TZ-50 Key Facts
- More than 17m working height and superior outreach of 8.89m
- Set-up is quick and simple thanks to automatic outrigger levelling
- 1.25m articulating jib with 135° range of motion
- Easily towed behind 4×4 vehicles
- Very compact stowed dimensions – easy to position

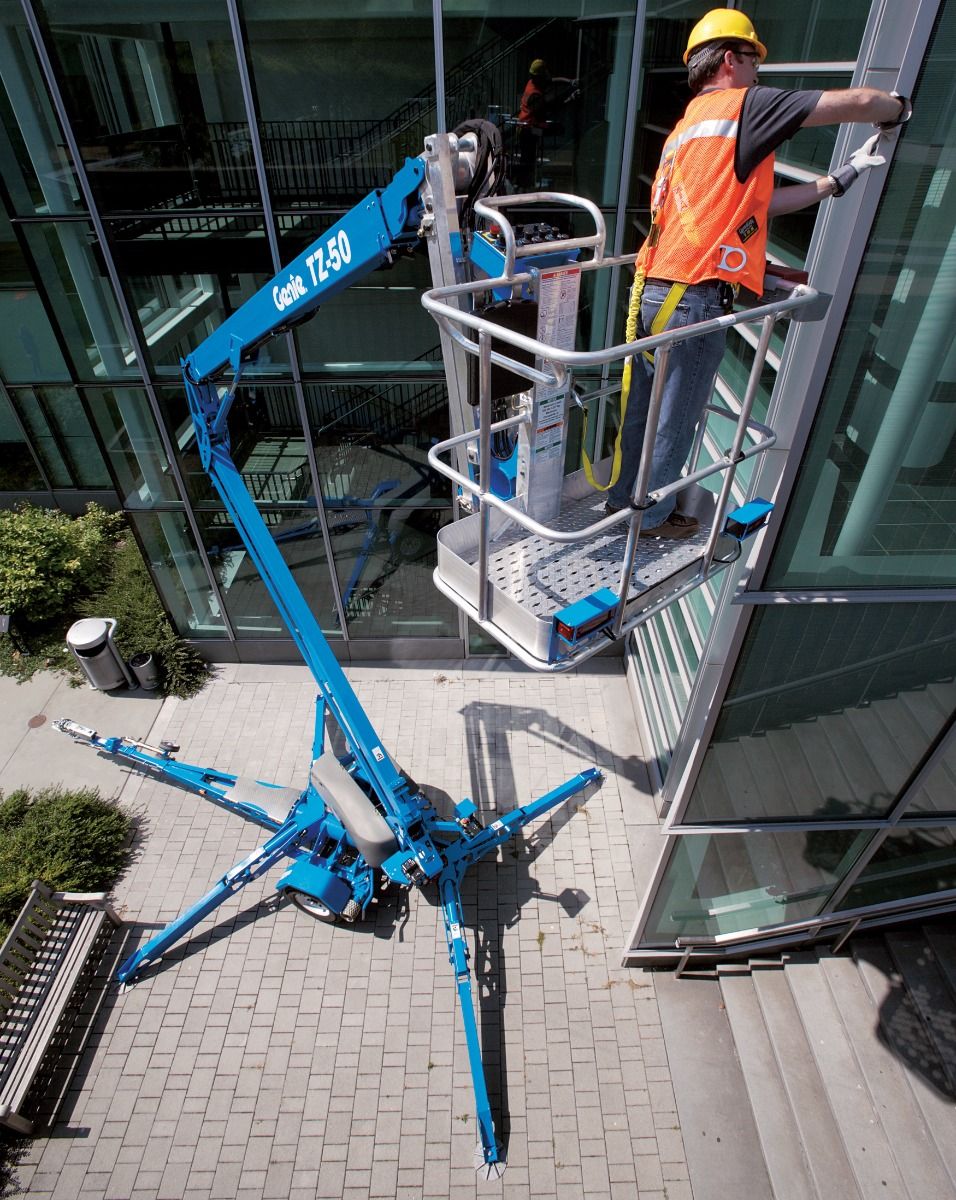

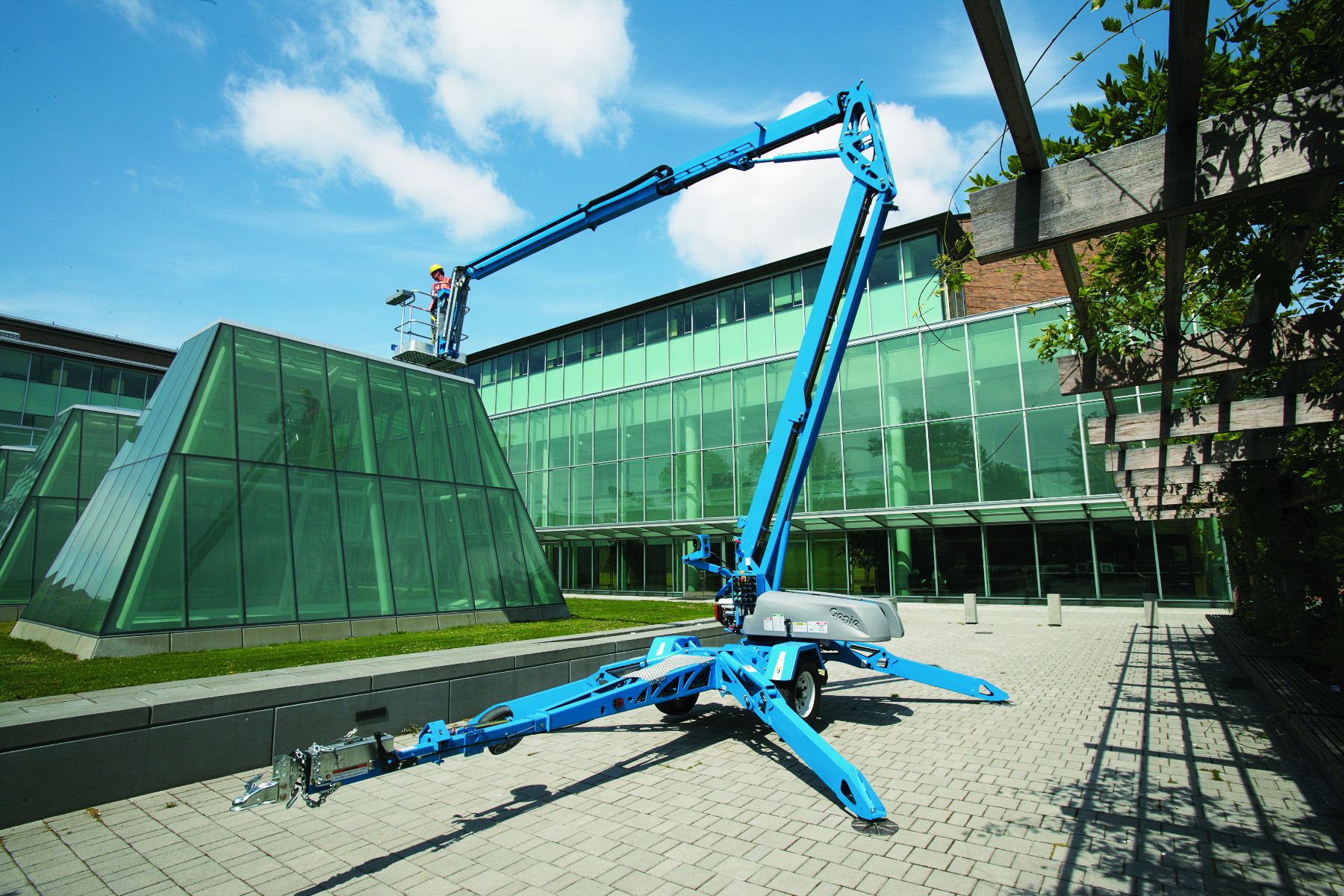

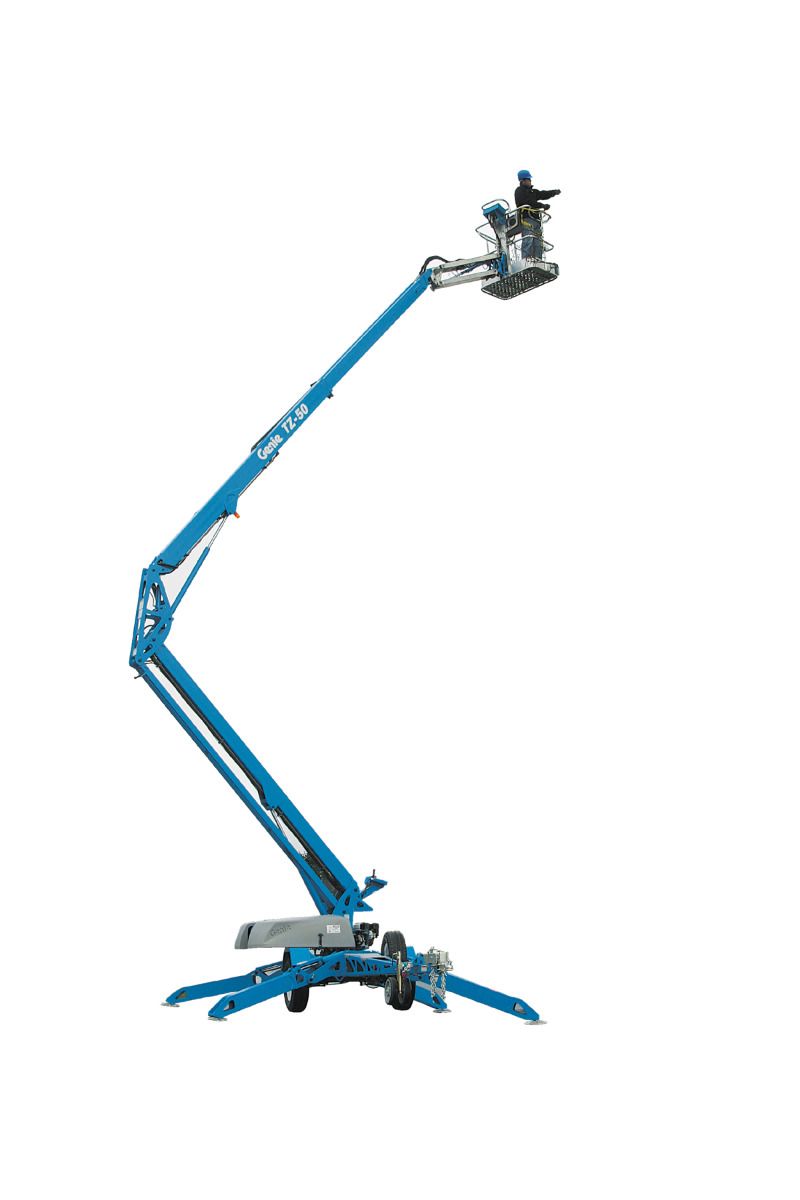

The Genie TZ-50 trailed mounted boom lift provides an outstanding working envelope with its “up, out and over” capabilities. These are delivered from a compact, lightweight design that makes it easy to position the machine prior to use and also easier to tow. Available as a battery-electric model or petrol/battery hybrid for more demanding applications.
Outrigger pads are recommended with this equipment. Find the right sized pads here >>
Specifications
| Max. Working Height | 17.09m |
|---|---|
| Max. Horizontal Outreach | 8.89m |
| Lift Capacity | 200kg |
| Power Source | Battery |
| Weight | 2,025kg |
| Travel Width | 1.68m |
| Lifting Mechanism | Articulated Boom |
| Chassis Type | DC Electric trailer |
